Tungsten V 8 Cameras 2020

Date Saved,2020/02/17 18:22:12
Title,TUNGSTEN_11_3208K

Sekonic C800 Measuring Mode,Ambient
Color Space / White Point,HSI,D65
CCT [K],3208
⊿uv,0.0005
Illuminance [lx],1110
Illuminance [fc],103
Reference CCT [K],3200
LB Index [MK⁻¹],1
LB Camera Filter,-----
LB Lighting Filter,-----
CC Index,0.1M
CC#,0.3M
CC Camera Filter,-----
CC Lighting Filter,-----
CRI Ra,99.4
CRI R1,99.6
CRI R2,99.5
CRI R3,99.2
CRI R4,99.2
CRI R5,99.5
CRI R6,99.2
CRI R7,99.3
CRI R8,99.4
CRI R9,99.2
CRI R10,98.8
CRI R11,99.0
CRI R12,99.1
CRI R13,99.4
CRI R14,99.4
CRI R15,99.6

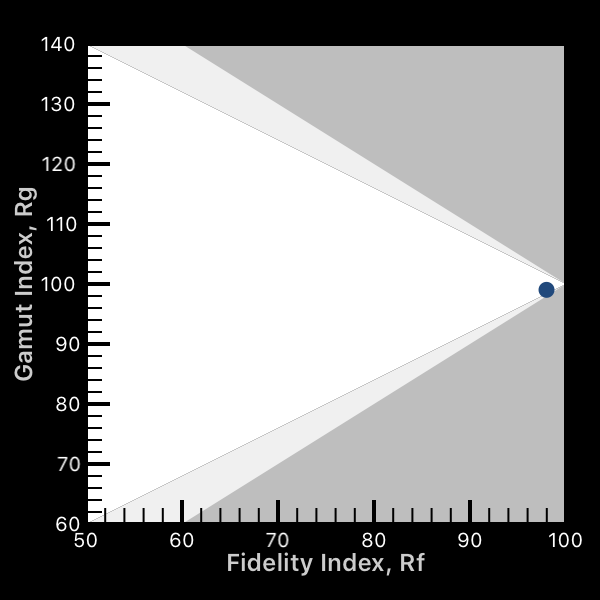

TM-30-18 Rf,99
TM-30-18 Rg,100
SSIt,97
SSId,64
SSI1,---
SSI2,---
TLCI,100
TLMF,---
CIE1931 x,0.4235
CIE1931 y,0.4003
Hue,36deg
Saturation,70%



Date Saved,2020/02/28 14:08:08
Title,TUNGSTEN_02_5787K

Sekonic C800 Measuring Mode,Ambient
Color Space / White Point,HSI,D65
CCT [K],5787
⊿uv,0.0018
Illuminance [lx],274
Illuminance [fc],25.4
Reference CCT [K],3200
LB Index [MK⁻¹],140
LB Camera Filter,85B
LB Lighting Filter,L285 3/4 CTO
CC Index,0.0
CC#,0.0M
CC Camera Filter,CC05G
CC Lighting Filter,L279 1/8 MINUS G
CRI Ra,87.7
CRI R1,85.4
CRI R2,88.9
CRI R3,89.4
CRI R4,86.5
CRI R5,86.1
CRI R6,85.4
CRI R7,93.4
CRI R8,86.3
CRI R9,59.1
CRI R10,71.9
CRI R11,82.8
CRI R12,81.9
CRI R13,84.9
CRI R14,93.0
CRI R15,86.1
TM-30-18 Rf,90
TM-30-18 Rg,101
SSIt,56
SSId,87
SSI1,---
SSI2,---
TLCI,85
TLMF,---
CIE1931 x,0.3262
CIE1931 y,0.3389
Hue,39deg
Saturation,10%
