2024 CML Camera/Lighting Tests – Light Measurements

Aputure ElectroStorm CS15

RGBW “dual blue” spot.

More info: Aputure

Note: brightness depends on the output mode of the light (some lights have modes that optimize brightness, others that optimize color, others that minimize fan noise...). The output mode is listed in tests where it was recorded, otherwise it is whatever mode the light was delivered in. The mode we tested may not be the mode used in the manufacture’s published specs. Use these brightness numbers to compare conditions only within this test. If you need a lamp to hit specific levels, please check with the manufacturer — or test it yourself!

Bare Fixture, 100% power at 3 meters / 9.85 feet

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
3200 K	5800	539	3159 K	0.000	—	—	—	—	—

(no meter images available)

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)

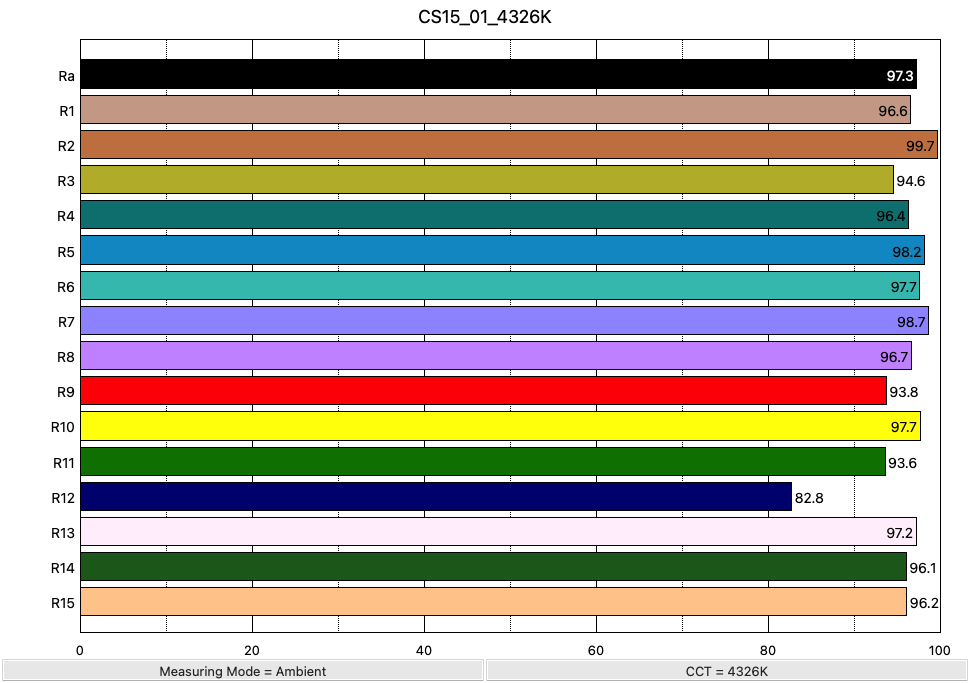

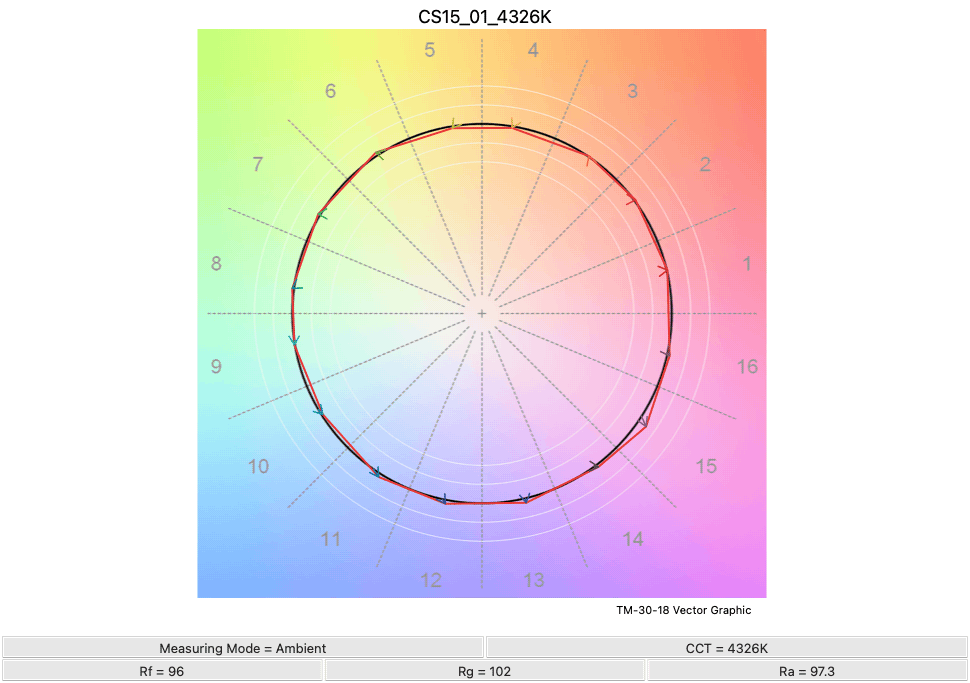

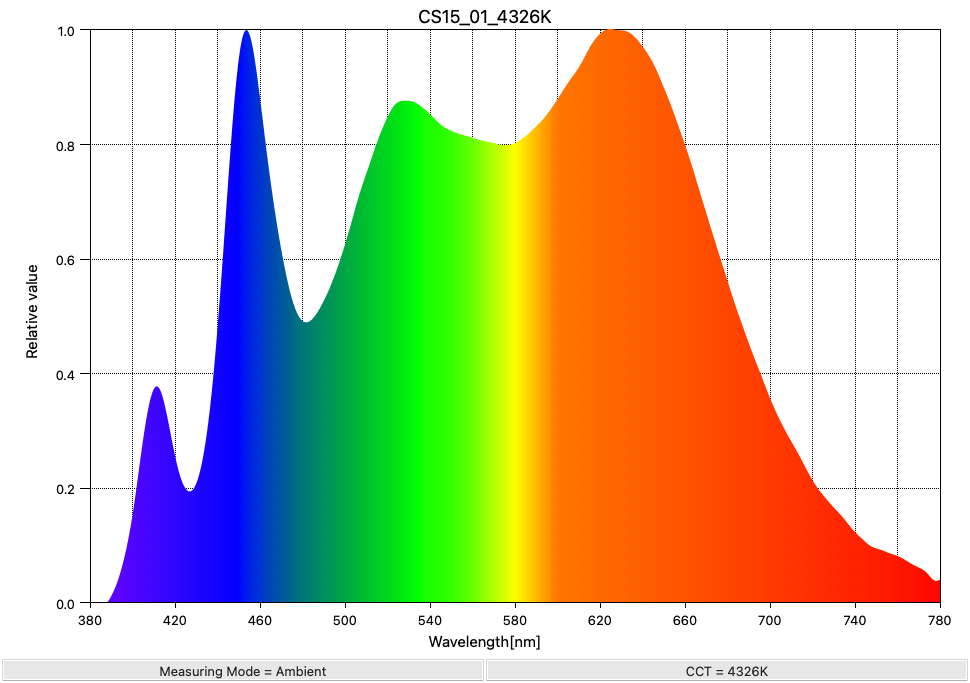

4400 K	6300	585	4326 K	-0.0004	—	96	102	98	97.3

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)

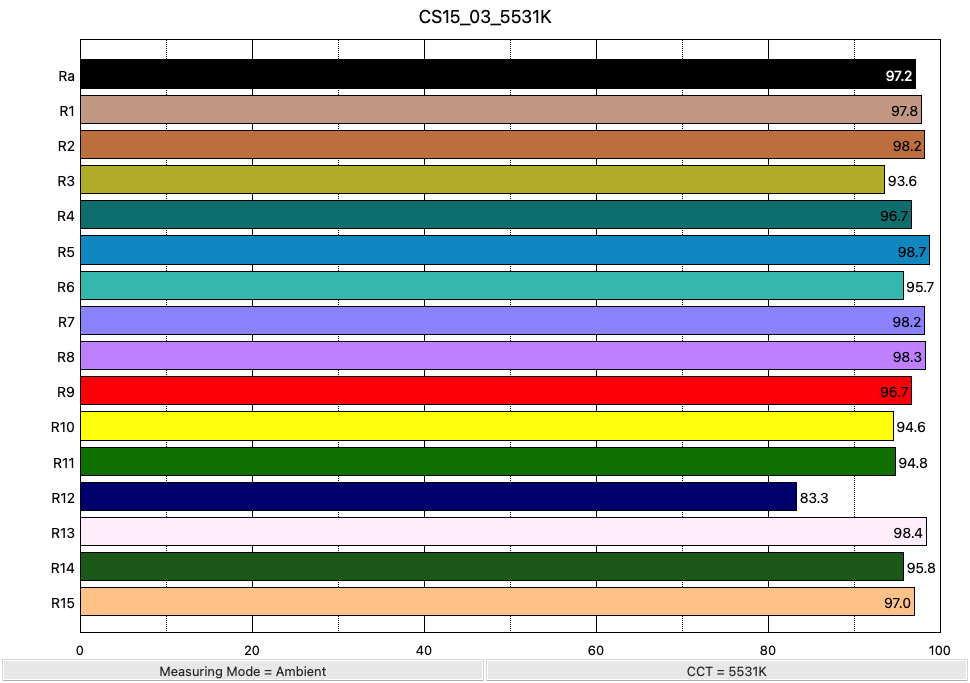

5600 K	6670	620	5531 K	-0.0005	85	95	102	99	97.2

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)

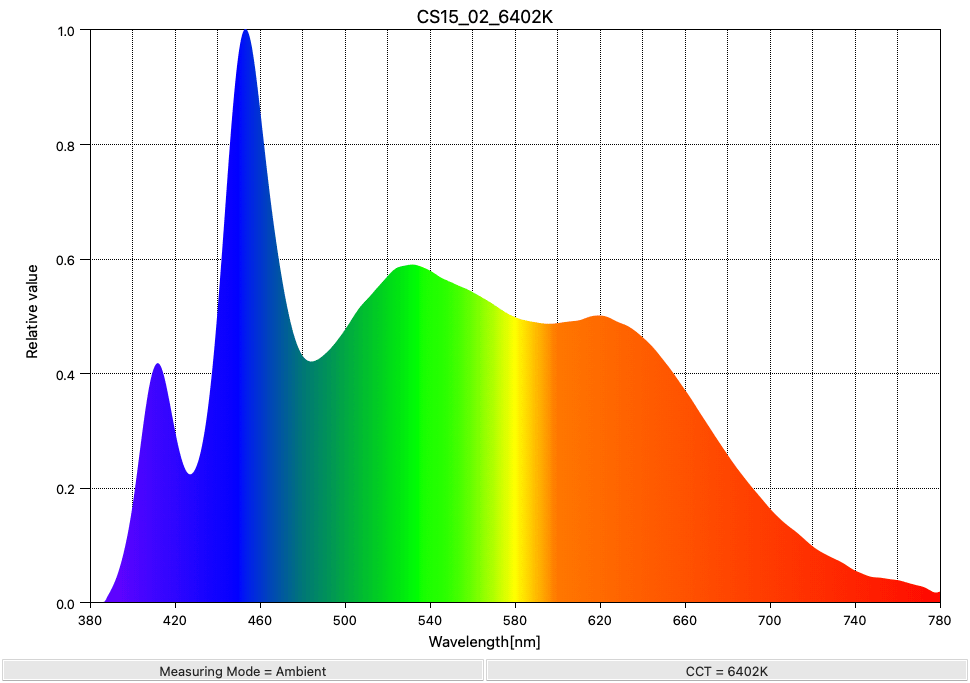

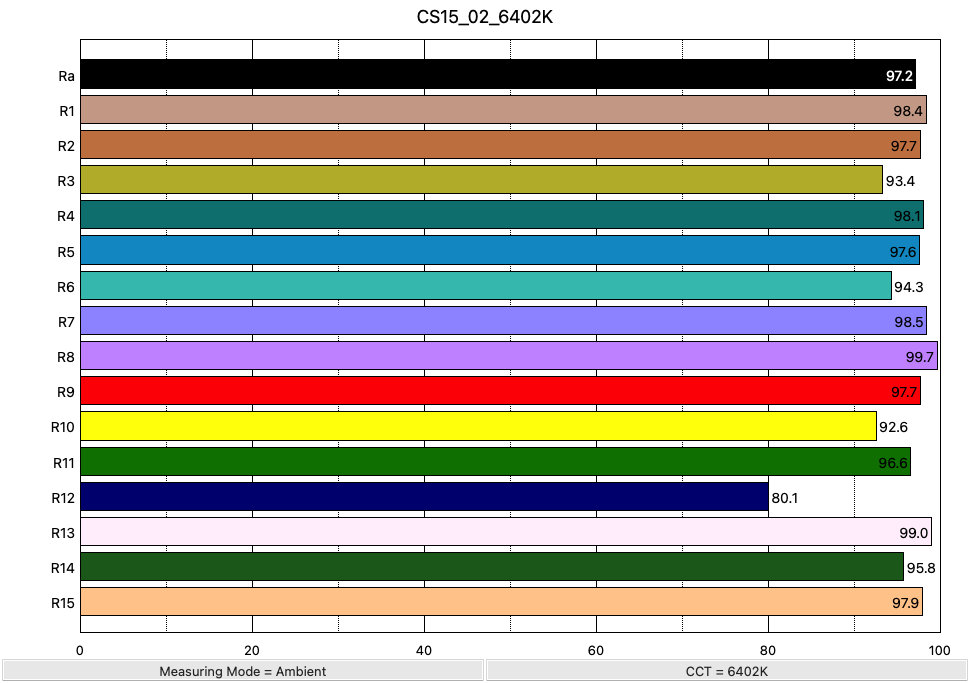

6500 K	6930	644	6402 K	-0.0004	—	94	101	98	97.2

Bare Fixture, dimming measurements at 3 meters / 9.85 feet

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
100%	6670	620	5531 K	-0.0005	85	95	102	99	97.2

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)

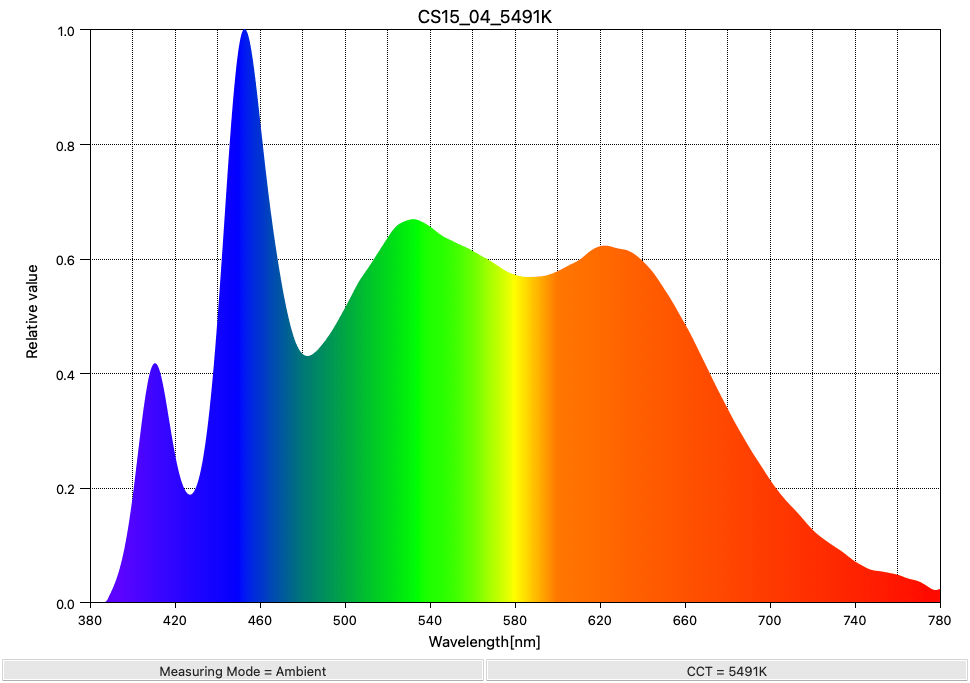

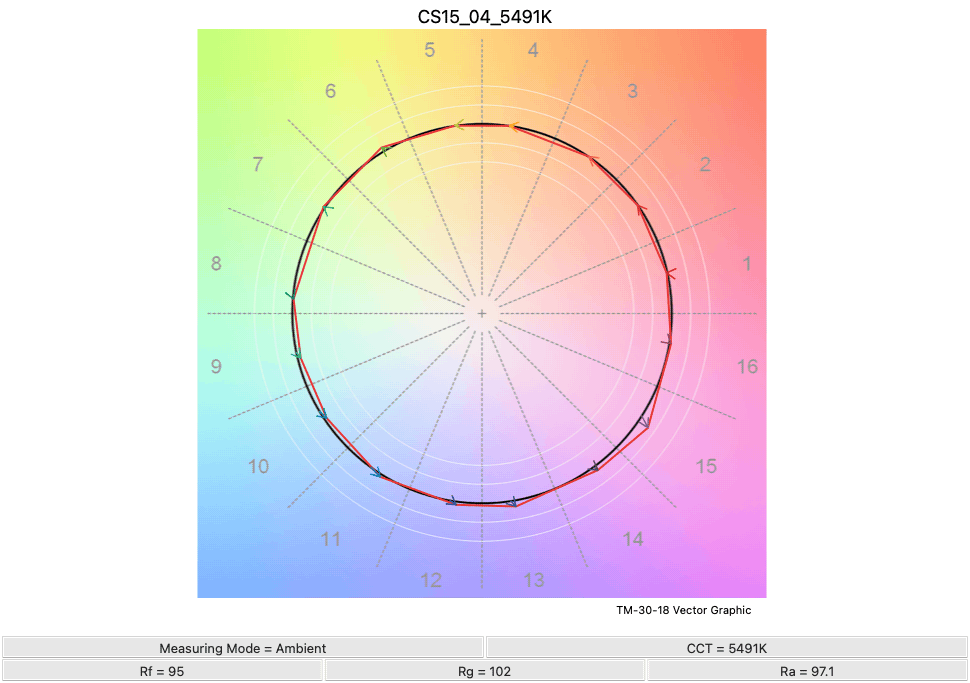

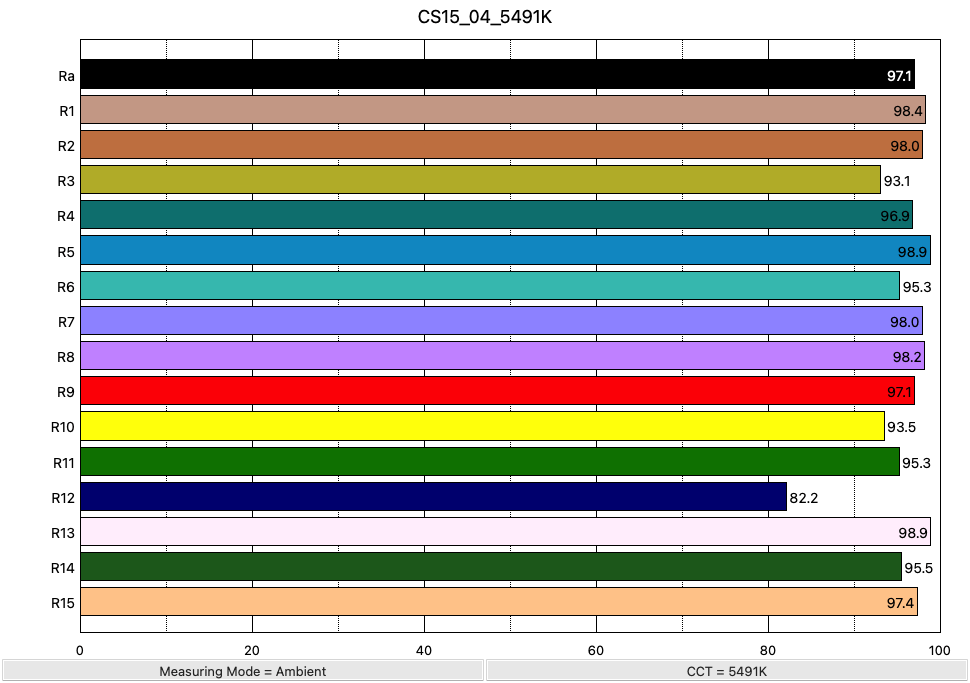

50%	3420	318	5491 K	-0.0002	84	95	102	98	97.1

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)

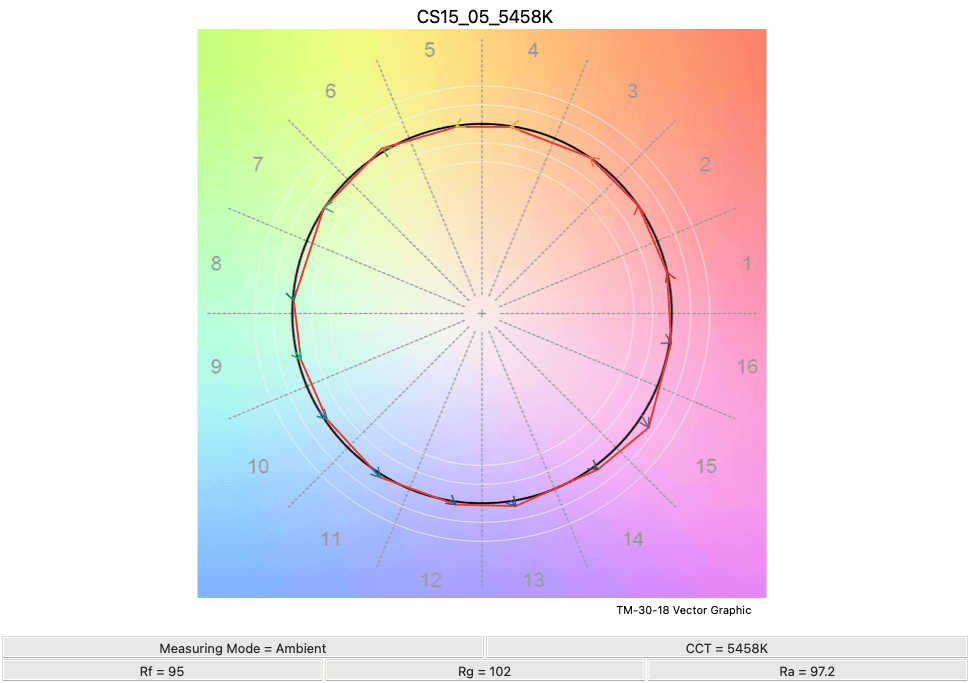

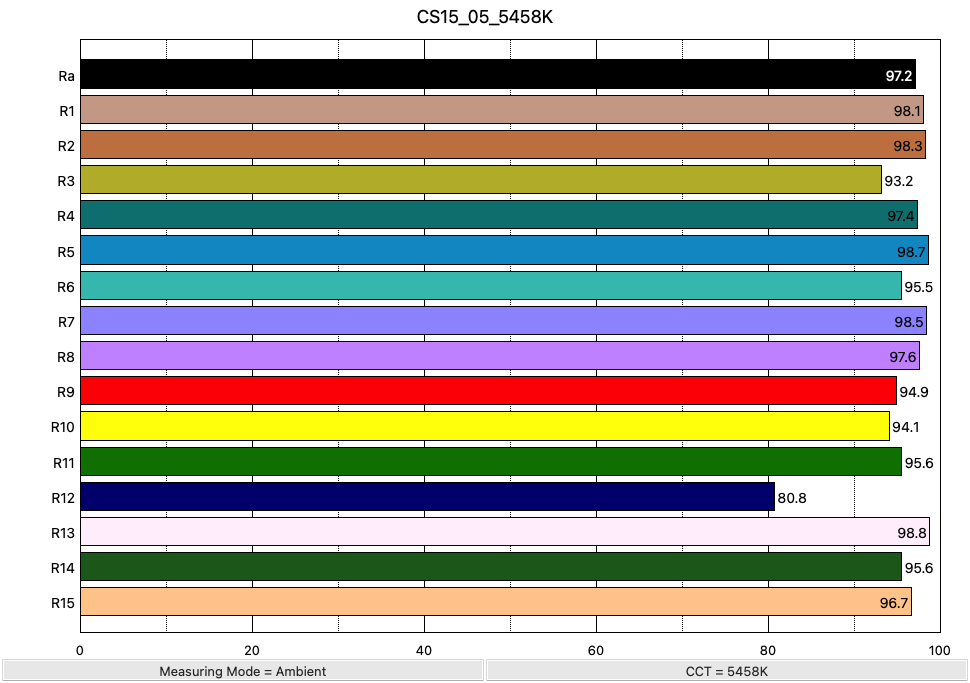

25%	1780	166	5458 K	0.0003	83	95	102	99	97.2

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)

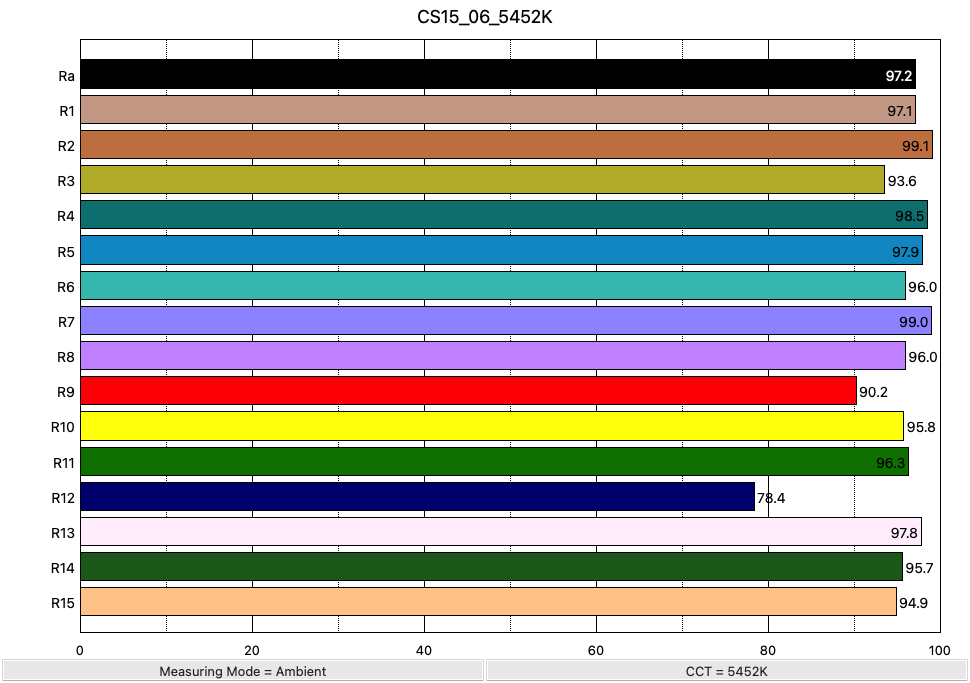

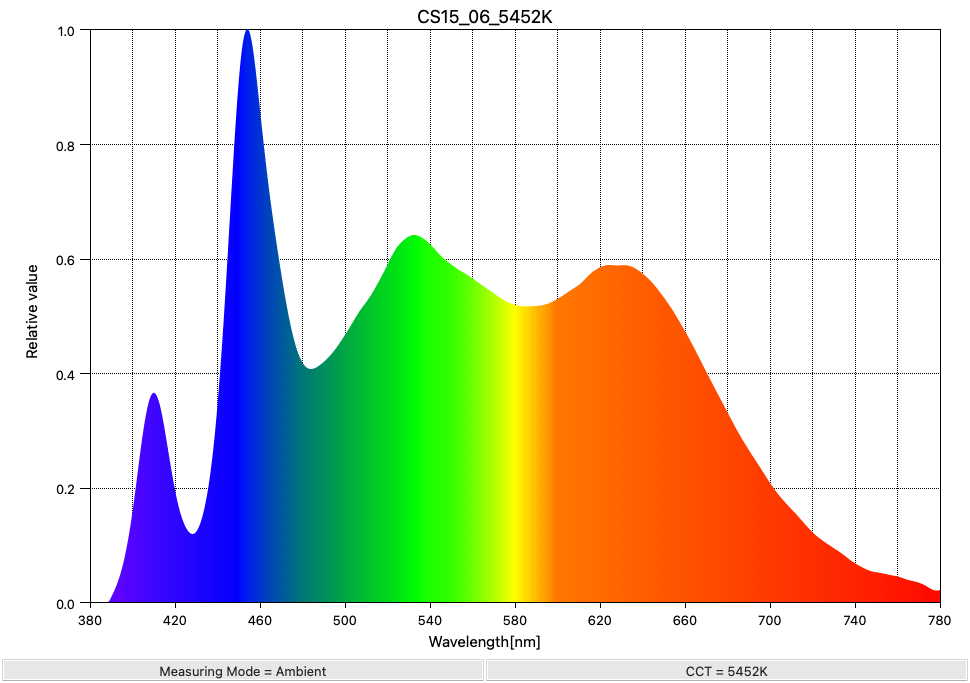

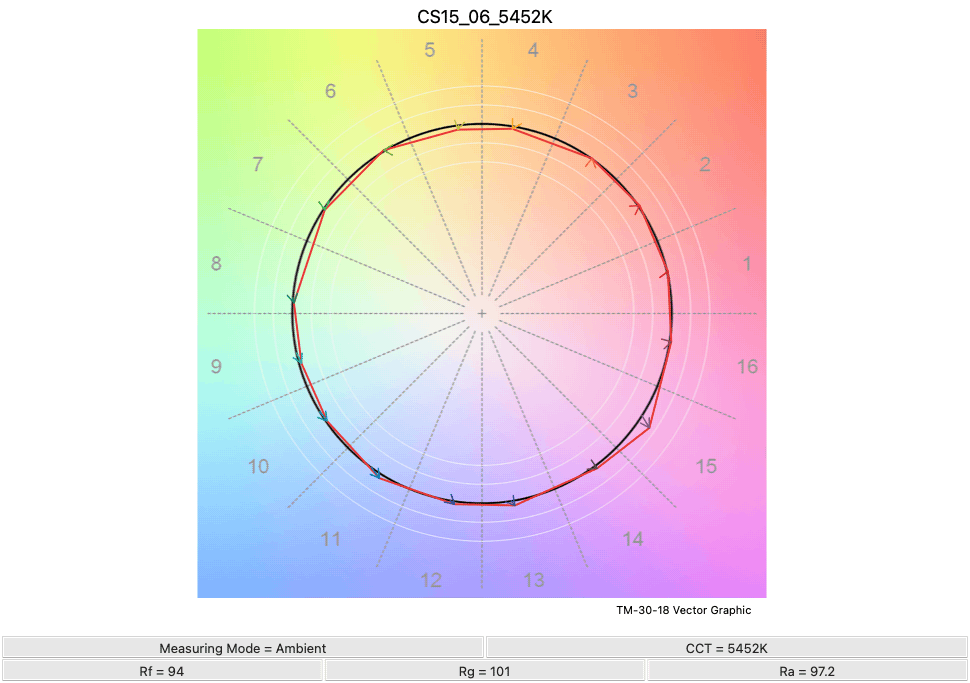

10%	707	65.7	5452 K	0.0008	82	94	101	99	97.2

Measurements and Beam Patterns at 3 meters / 9.85 feet

Light is aimed at the central pipe with the green tape on it. Tape marks indicate 15º increments of beam spread: each tape mark is 7.5º from its neighbor, so the two tape marks closest to the center marker span 15º total. The next nearest ones span 30º between them, the next pair out indicate 45º, and so on. Images captured with the camera (Lumix GH5) set to 5600 K white balance, “standard” photo style, using a 7mm lens. No adjustments made in post other than resizing for the web.

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv

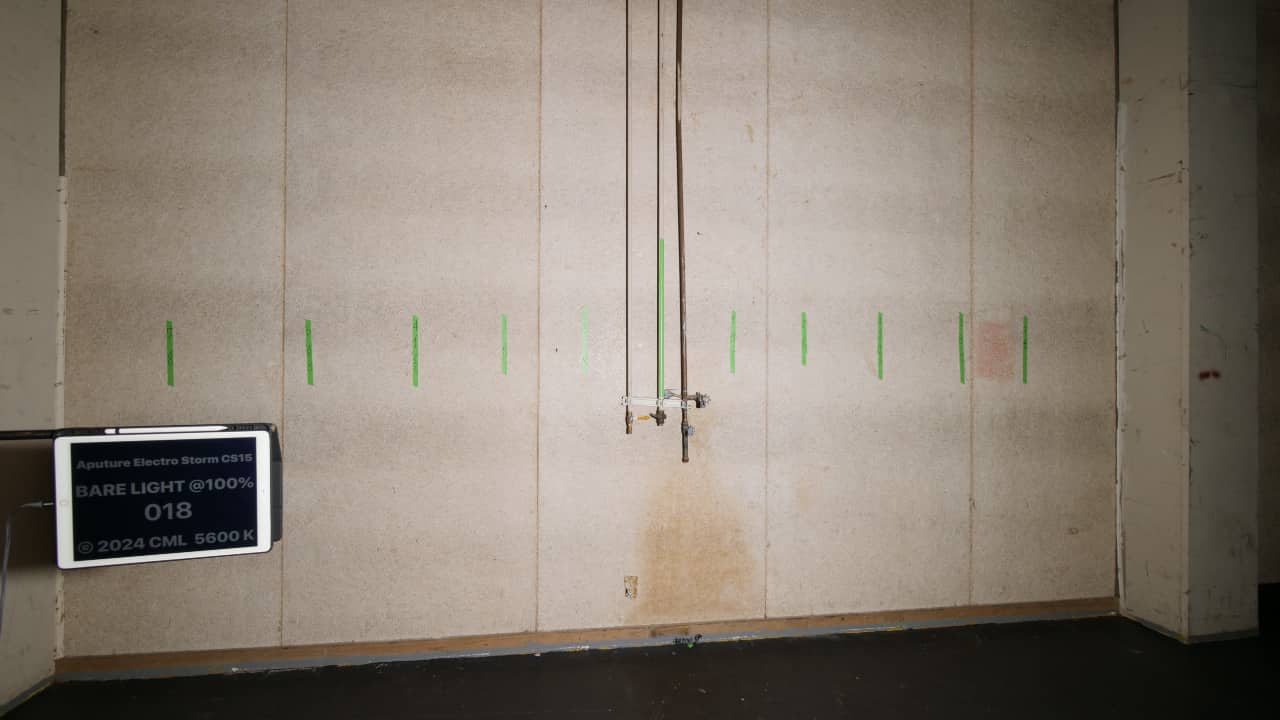

Bare Fixture	6670	620	5531 K	-0.0005

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv

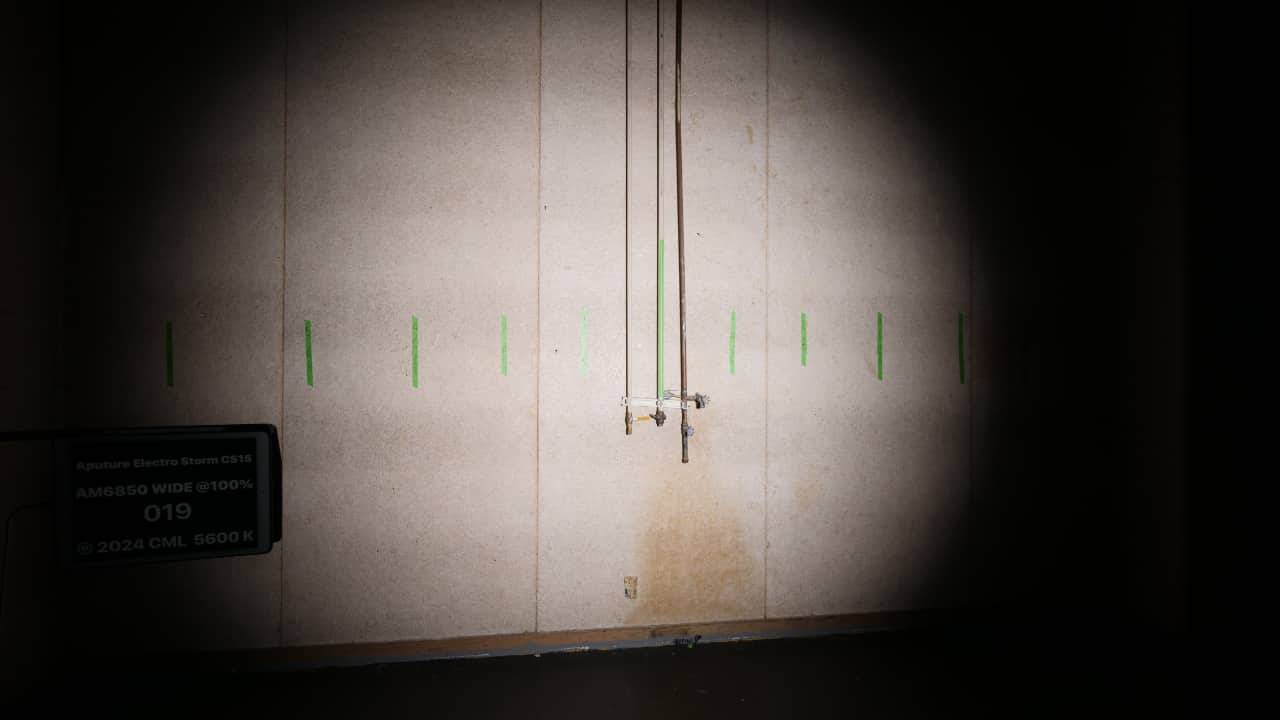

Am6850 Wide	22100	2,053	5510 K	-0.001

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv

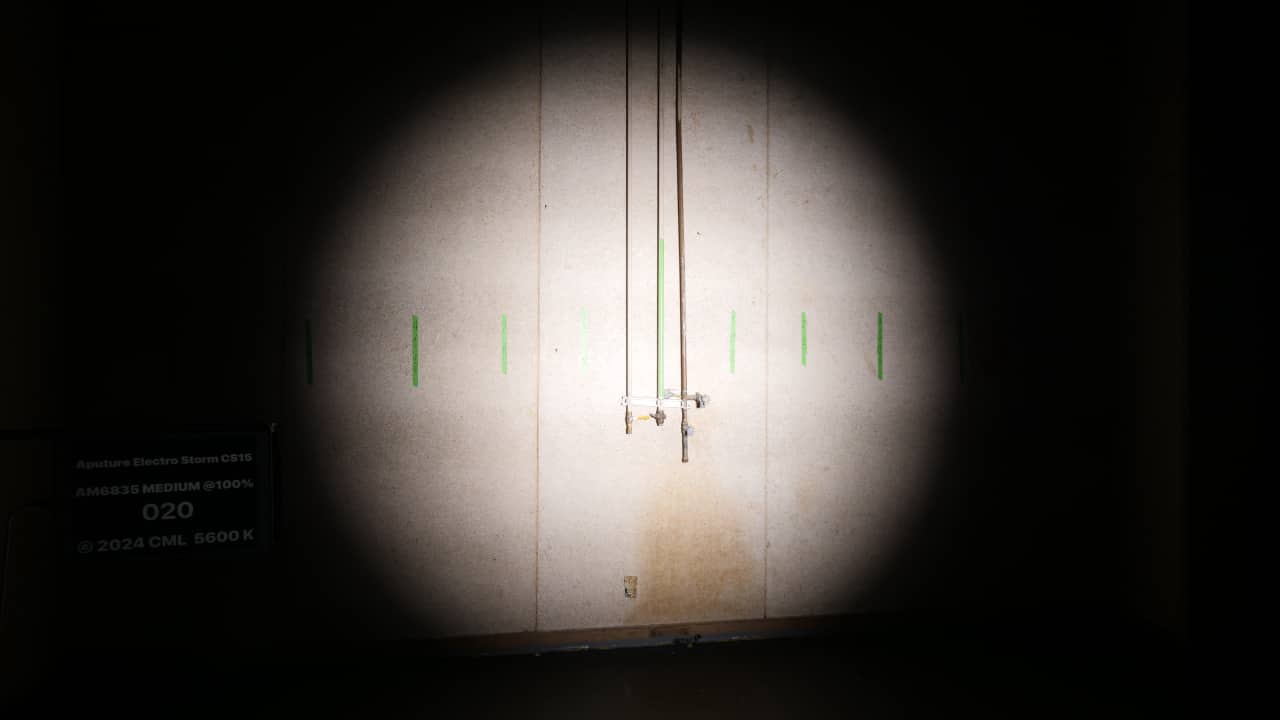

Am6835 Medium	43500	4,041	5521 K	-0.001

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv

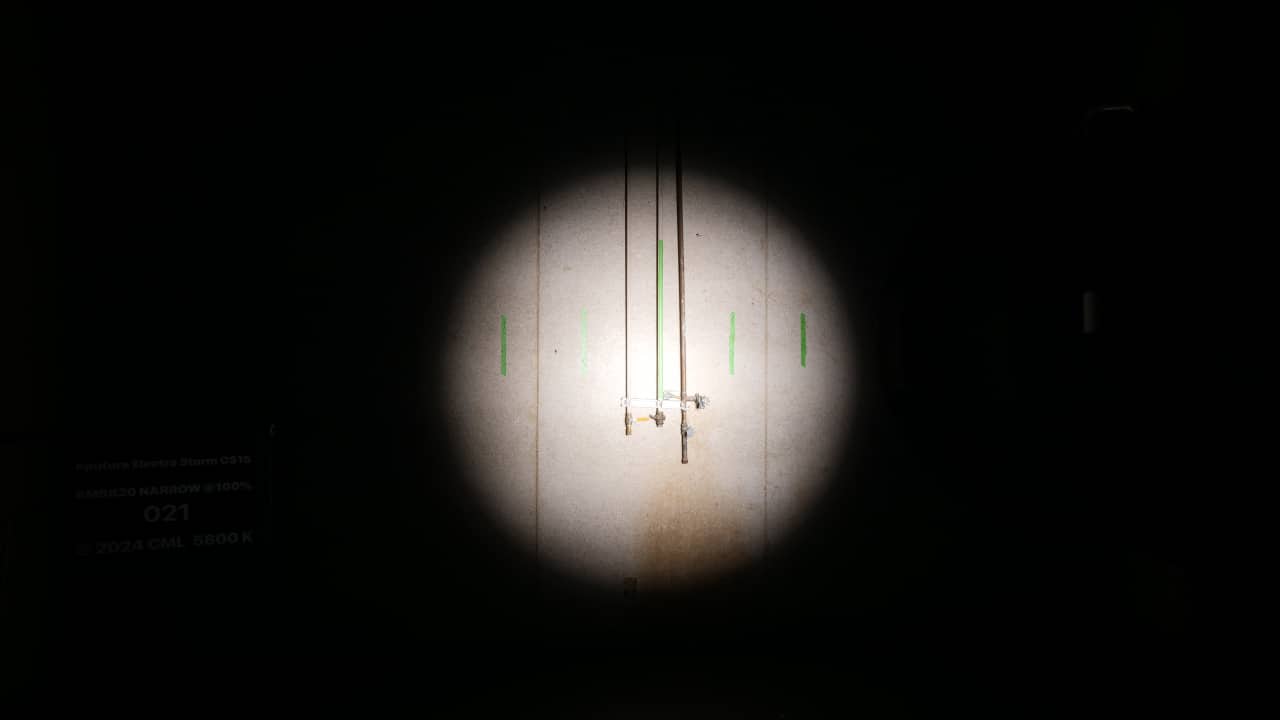

Am6820 Narrow	121000	11,241	5462 K	-0.001

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv

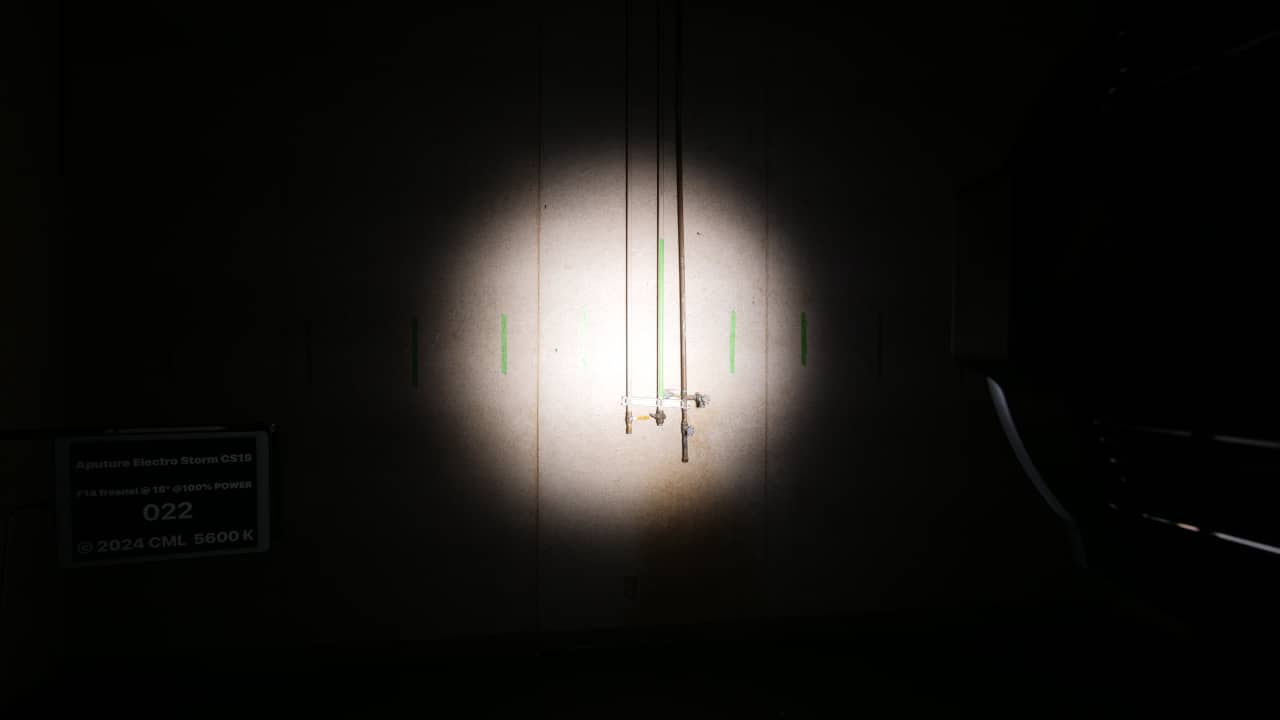

F14 Fresnel @ 18º	65000	6,039	5508 K	-0.003

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv

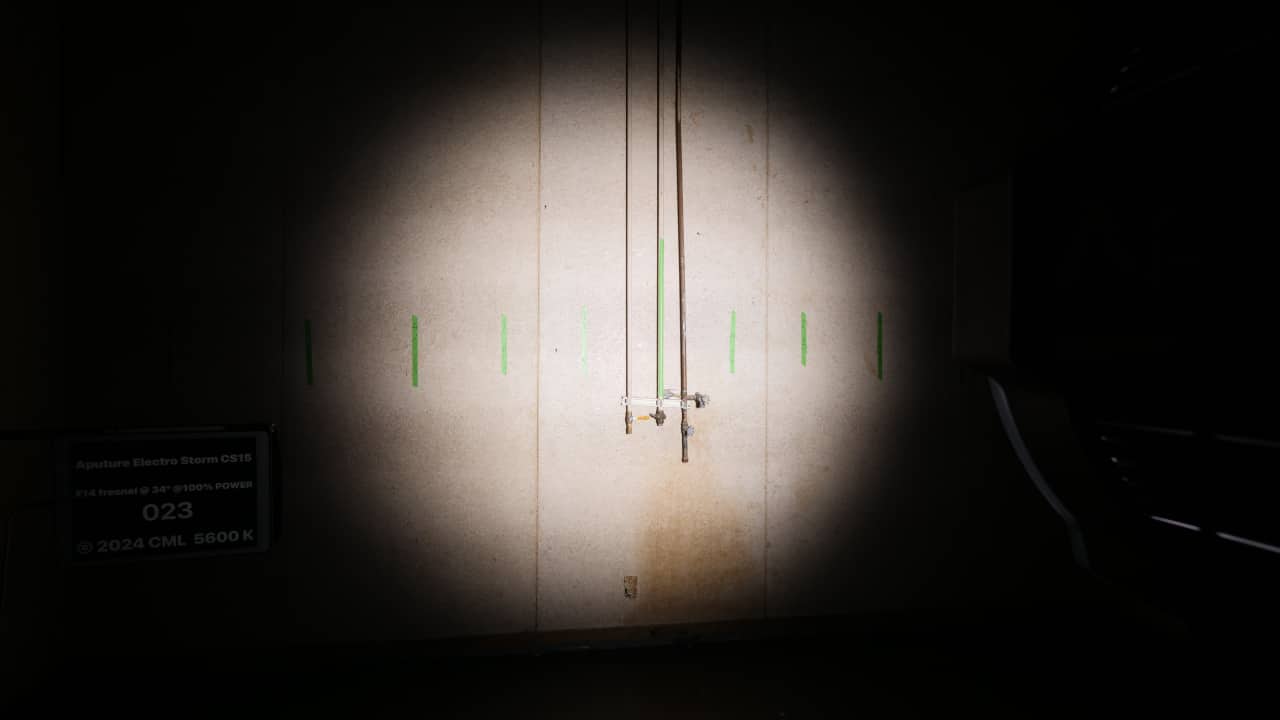

F14 Fresnel @ 34º	25700	2,388	5551 K	-0.004

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv

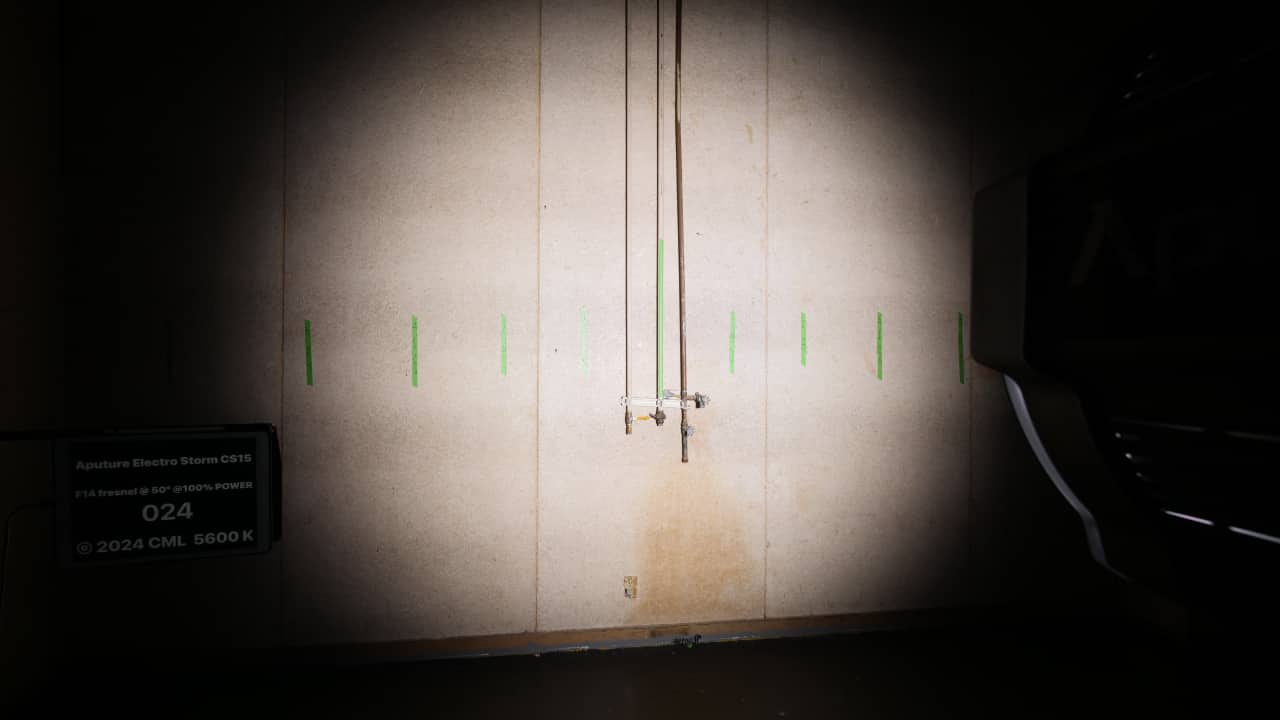

F14 Fresnel @ 50º	15200	1,412	5458 K	-0.004
