2024 CML Camera/Lighting Tests – Light Measurements

Aputure ElectroStorm XT26

“Dynamic white” spot with G/M adjustment.

More info: Aputure

Note: brightness depends on the output mode of the light (some lights have modes that optimize brightness, others that optimize color, others that minimize fan noise...). The output mode is listed in tests where it was recorded, otherwise it is whatever mode the light was delivered in. The mode we tested may not be the mode used in the manufacture’s published specs. Use these brightness numbers to compare conditions only within this test. If you need a lamp to hit specific levels, please check with the manufacturer — or test it yourself!

Bare Fixture, 100% power at 3 meters / 9.85 feet

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
3200 K	5880	546	3154 K	-0.0012	84	95	103	98	96.7
Note:	output set to constant mode

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
4400 K	5900	548	4406 K	-0.0012	—	94	103	98	96.0
Note:	output set to constant mode

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
5600 K	6120	568	5503 K	-0.0001	73	94	103	99	96.4
Note:	output set to constant mode

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
6500 K	6080	565	6400 K	-0.0009	—	93	102	98	97.1
Note:	output set to constant mode

Bare Fixture, dimming measurements at 3 meters / 9.85 feet

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
100%	6120	568	5503 K	-0.0001	73	94	103	99	96.4
Note:	output set to constant mode

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
50%	3210	298	5525 K	0.0004	72	94	103	99	96.5
Note:	output set to constant mode

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
25%	1470	136	5385 K	0.0005	72	93	102	99	96.4
Note:	output set to constant mode

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
10%	623	57.9	5439 K	0.0002	71	93	102	98	96.2
Note:	output set to constant mode

Measurements and Beam Patterns at 3 meters / 9.85 feet

Light is aimed at the central pipe with the green tape on it. Tape marks indicate 15º increments of beam spread: each tape mark is 7.5º from its neighbor, so the two tape marks closest to the center marker span 15º total. The next nearest ones span 30º between them, the next pair out indicate 45º, and so on. Images captured with the camera (Lumix GH5) set to 5600 K white balance, “standard” photo style, using a 7mm lens. No adjustments made in post other than resizing for the web.

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Bare Fixture	6120	568	5503 K	-0.0001
Note:	output set to constant mode

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv

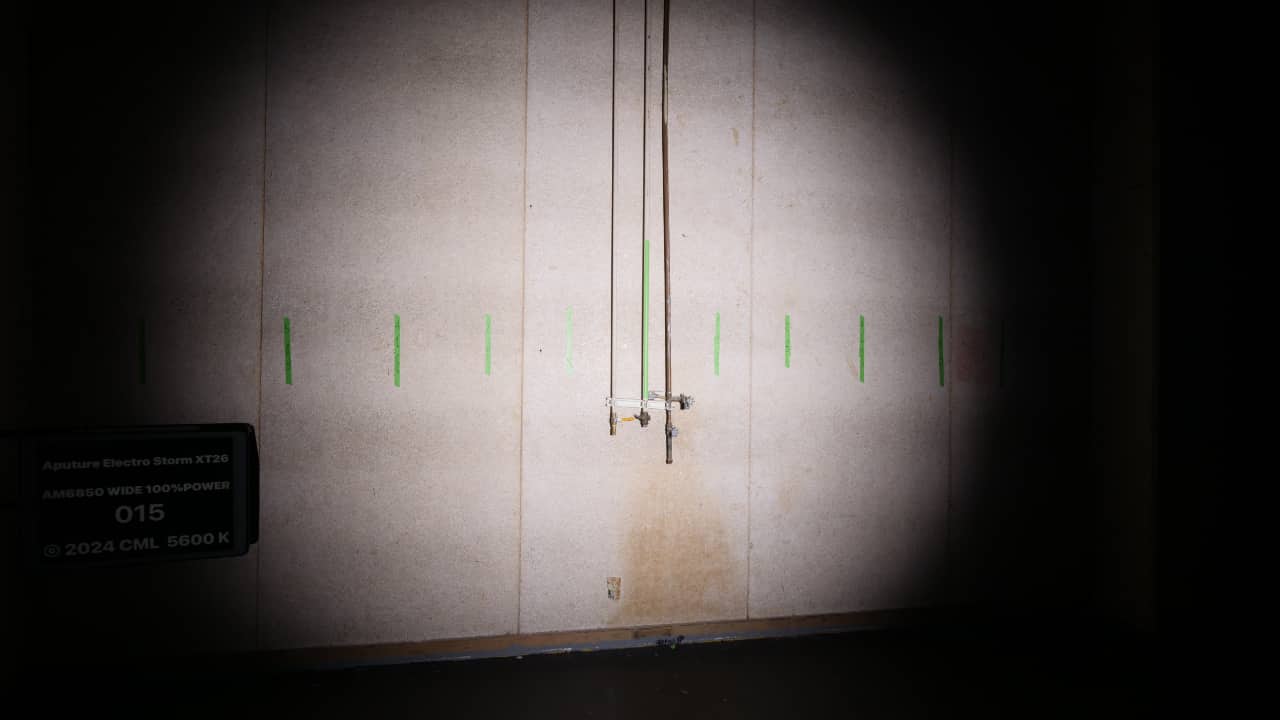

Am6850 Wide	19000	1,765	5671 K	-0.001
Note:	output set to constant mode

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Am6835 Medium	37600	3,493	5667 K	0.000
Note:	output set to constant mode

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Am6820 Narrow	110000	10,219	5595 K	0.000
Note:	output set to constant mode

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
F14 Fresnel 50º	13800	1,282	5394 K	-0.002
Note:	output set to constant mode

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
F14 Fresnel 34º	22500	2,090	5447 K	-0.002
Note:	output set to constant mode

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
F14 Fresnel 18º	57100	5,305	5488 K	-0.001
Note:	output set to constant mode
