2024 CML Camera/Lighting Tests – Light Measurements

Aputure LS600C Pro

RGBWW spot.

More info: Aputure

Note: brightness depends on the output mode of the light (some lights have modes that optimize brightness, others that optimize color, others that minimize fan noise...). The output mode is listed in tests where it was recorded, otherwise it is whatever mode the light was delivered in. The mode we tested may not be the mode used in the manufacture’s published specs. Use these brightness numbers to compare conditions only within this test. If you need a lamp to hit specific levels, please check with the manufacturer — or test it yourself!

Bare Fixture, 100% power at 3 meters / 9.85 feet

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)

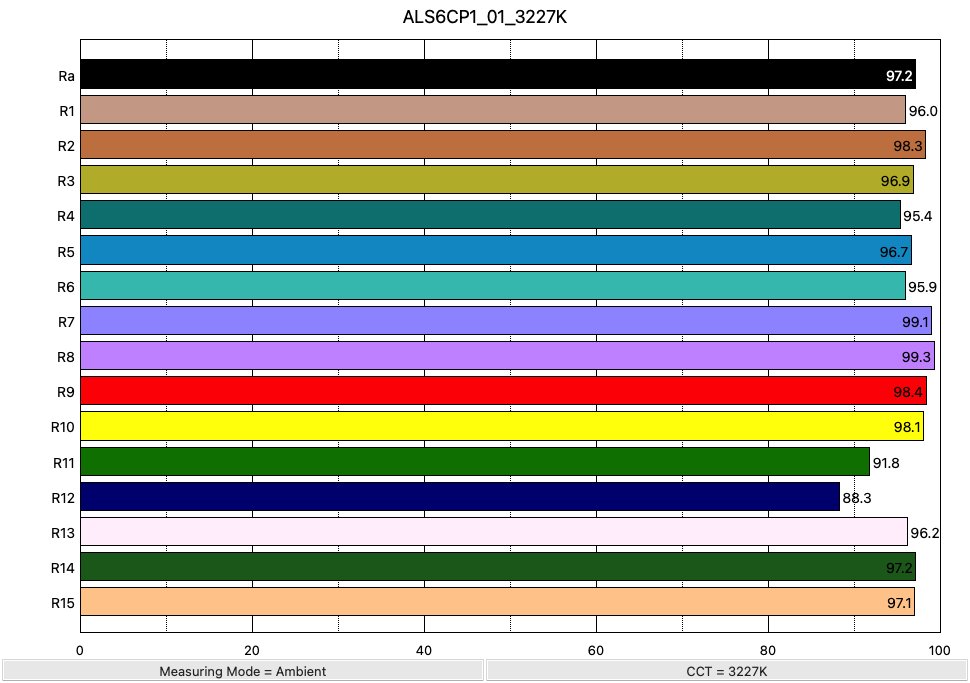

3200 K	2060	192	3227 K	-0.0022	84	95	103	98	97.2

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
4400 K	2340	217	4536 K	-0.0033	—	94	102	98	97.7

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
5600 K	2580	240	6011 K	-0.0024	72	93	102	97	96.5

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)

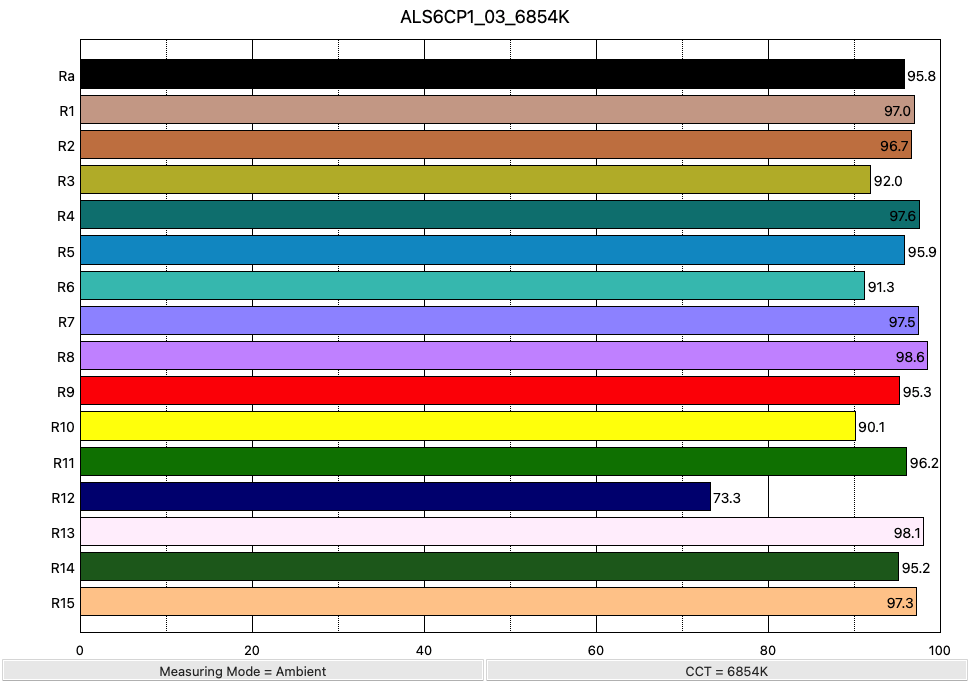

6500 K	2560	238	6854 K	-0.0027	—	91	101	95	95.8

Bare Fixture, dimming measurements at 3 meters / 9.85 feet

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
100%	2580	240	6011 K	-0.0024	72	93	102	97	96.5

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
50%	1320	123	6001 K	-0.0023	72	93	103	98	95.5

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
25%	650	60.3	5768 K	-0.0029	72	92	102	97	96.6

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
10%	312	29.0	5906 K	-0.0024	71	93	103	98	95.5

Measurements and Beam Patterns at 3 meters / 9.85 feet

Light is aimed at the central pipe with the green tape on it. Tape marks indicate 15º increments of beam spread: each tape mark is 7.5º from its neighbor, so the two tape marks closest to the center marker span 15º total. The next nearest ones span 30º between them, the next pair out indicate 45º, and so on. Images captured with the camera (Lumix GH5) set to 5600 K white balance, “standard” photo style, using a 7mm lens. No adjustments made in post other than resizing for the web.

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Bare Fixture	2580	240	6011 K	-0.0024

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Hyper Reflector	6520	606	5680 K	0

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
F10 Fresnel 15º-45º @ 45º	5040	468	5730 K	-0

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
F10 Fresnel 15º-45º @ 30º	6970	648	5718 K	0

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
F10 Fresnel 15º-45º @ 15º	11700	1,087	5726 K	-0
