2024 CML Camera/Lighting Tests – Light Measurements

ARRI Skypanel X

RGBACL panel.

More info: ARRI

Note: brightness depends on the output mode of the light (some lights have modes that optimize brightness, others that optimize color, others that minimize fan noise...). The output mode is listed in tests where it was recorded, otherwise it is whatever mode the light was delivered in. The mode we tested may not be the mode used in the manufacture’s published specs. Use these brightness numbers to compare conditions only within this test. If you need a lamp to hit specific levels, please check with the manufacturer — or test it yourself!

Bare Fixture, 100% power at 3 meters / 9.85 feet

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)

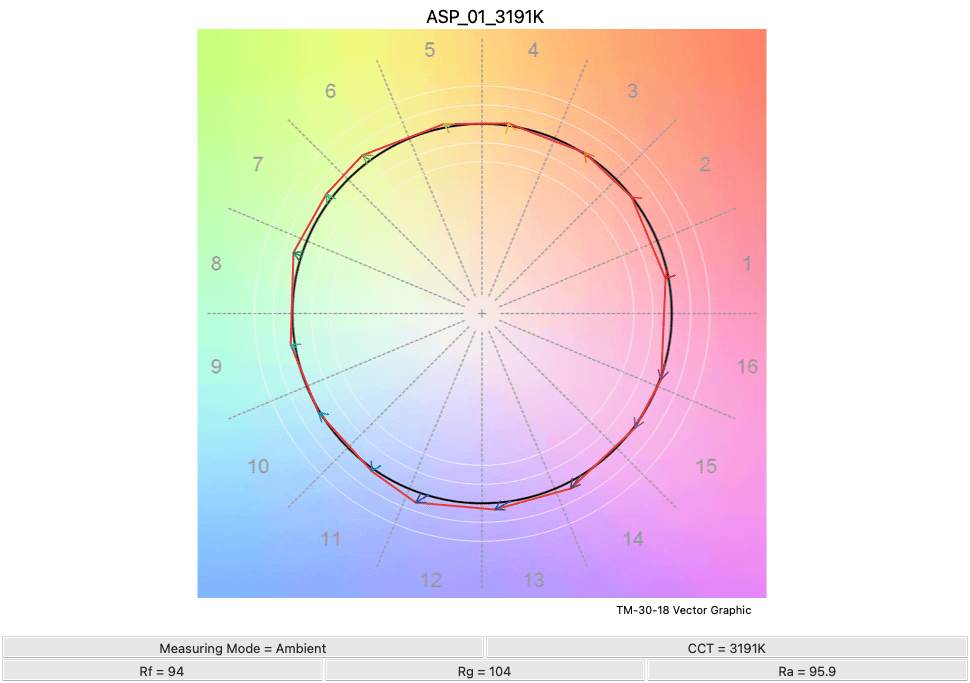

3200 K	1640	153	3191 K	-0.0023	72	94	104	86	95.9
Note:	output set to ALEXA mode

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
4400 K	1760	164	4344 K	-0.0049	—	92	104	84	95.8
Note:	output set to ALEXA mode

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
5600 K	1790	166	5555 K	-0.0032	67	93	104	91	95.3
Note:	output set to ALEXA mode

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)

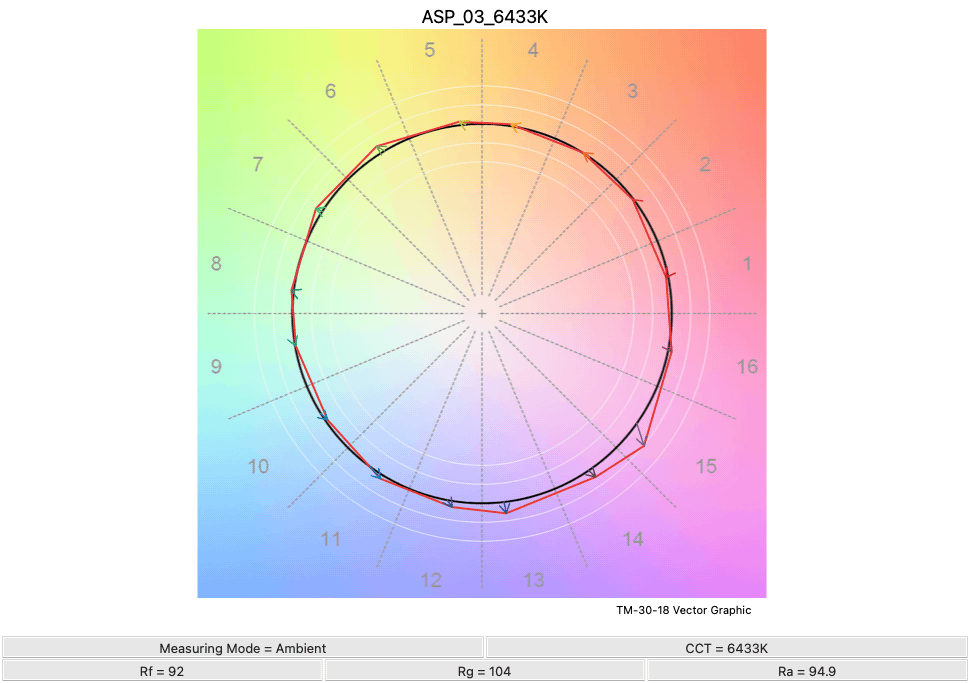

6500 K	1770	164	6433 K	-0.0035	—	92	104	93	94.9
Note:	output set to ALEXA mode

Bare Fixture, dimming measurements at 3 meters / 9.85 feet

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
100%	1790	166	5555 K	-0.0032	67	93	104	91	95.3
Note:	output set to ALEXA mode

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
50%	898	83.4	5496 K	-0.0029	67	93	104	91	95.4
Note:	output set to ALEXA mode

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
25%	449	42	5506 K	-0.003	—	—	—	—	—
Note:	output set to ALEXA mode

(no meter images available)

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
10%	177	16.4	5551 K	-0.0025	66	92	104	91	95.1
Note:	output set to ALEXA mode

Measurements and Beam Patterns at 3 meters / 9.85 feet

Light is aimed at the central pipe with the green tape on it. Tape marks indicate 15º increments of beam spread: each tape mark is 7.5º from its neighbor, so the two tape marks closest to the center marker span 15º total. The next nearest ones span 30º between them, the next pair out indicate 45º, and so on. Images captured with the camera (Lumix GH5) set to 5600 K white balance, “standard” photo style, using a 7mm lens. No adjustments made in post other than resizing for the web.

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Bare Fixture	1790	166	5555 K	-0.0032
Note:	output set to ALEXA mode

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Dome Diffusion	1590	148	5598 K	-0.003
Note:	output set to ALEXA mode

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Hyper Optic	33000	3,066	5430 K	-0.002
Note:	output set to ALEXA mode

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Hyper Optic W/ Flat Bef	9550	887	5409 K	-0.002
Note:	output set to ALEXA mode
