2024 CML Camera/Lighting Tests – Light Measurements

Cineo Reflex R10

Bi-color spot.

More info: Cineo

Note: brightness depends on the output mode of the light (some lights have modes that optimize brightness, others that optimize color, others that minimize fan noise...). The output mode is listed in tests where it was recorded, otherwise it is whatever mode the light was delivered in. The mode we tested may not be the mode used in the manufacture’s published specs. Use these brightness numbers to compare conditions only within this test. If you need a lamp to hit specific levels, please check with the manufacturer — or test it yourself!

Bare Fixture, 100% power at 3 meters / 9.85 feet

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
3200 K	243	22.6	3002 K	-0.0015	86	93	101	98	95.1

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
4400 K	408	37.9	4105 K	-0.0032	—	92	101	99	94.4

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
5600 K	447	41.5	5064 K	-0.0008	74	93	101	99	95.9

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
6500 K	394	36.6	5749 K	0.0022	—	93	100	99	96.9
Note:	noticeably loud ballast noise

Bare Fixture, dimming measurements at 3 meters / 9.85 feet

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
100%	447	41.5	5064 K	-0.0008	74	93	101	99	95.9

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
50%	231	21.5	5099 K	0.0003	73	92	100	98	95.4

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
25%	120	11.2	5140 K	0.0009	72	91	100	98	95.0

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
10%	27	3	5004 K	-0.001	—	—	—	—	—

(no meter images available)

Measurements and Beam Patterns at 3 meters / 9.85 feet

Light is aimed at the central pipe with the green tape on it. Tape marks indicate 15º increments of beam spread: each tape mark is 7.5º from its neighbor, so the two tape marks closest to the center marker span 15º total. The next nearest ones span 30º between them, the next pair out indicate 45º, and so on. Images captured with the camera (Lumix GH5) set to 5600 K white balance, “standard” photo style, using a 7mm lens. No adjustments made in post other than resizing for the web.

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv

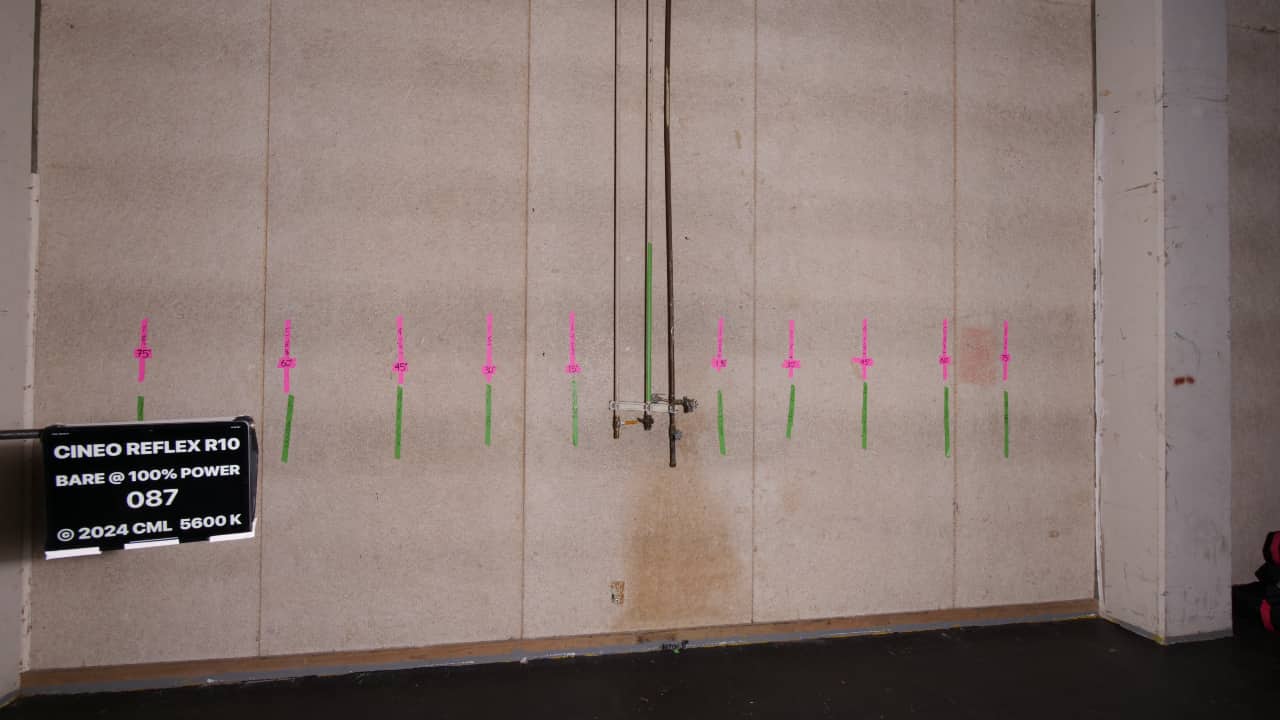

Bare Fixture	447	41.5	5064 K	-0.0008

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv

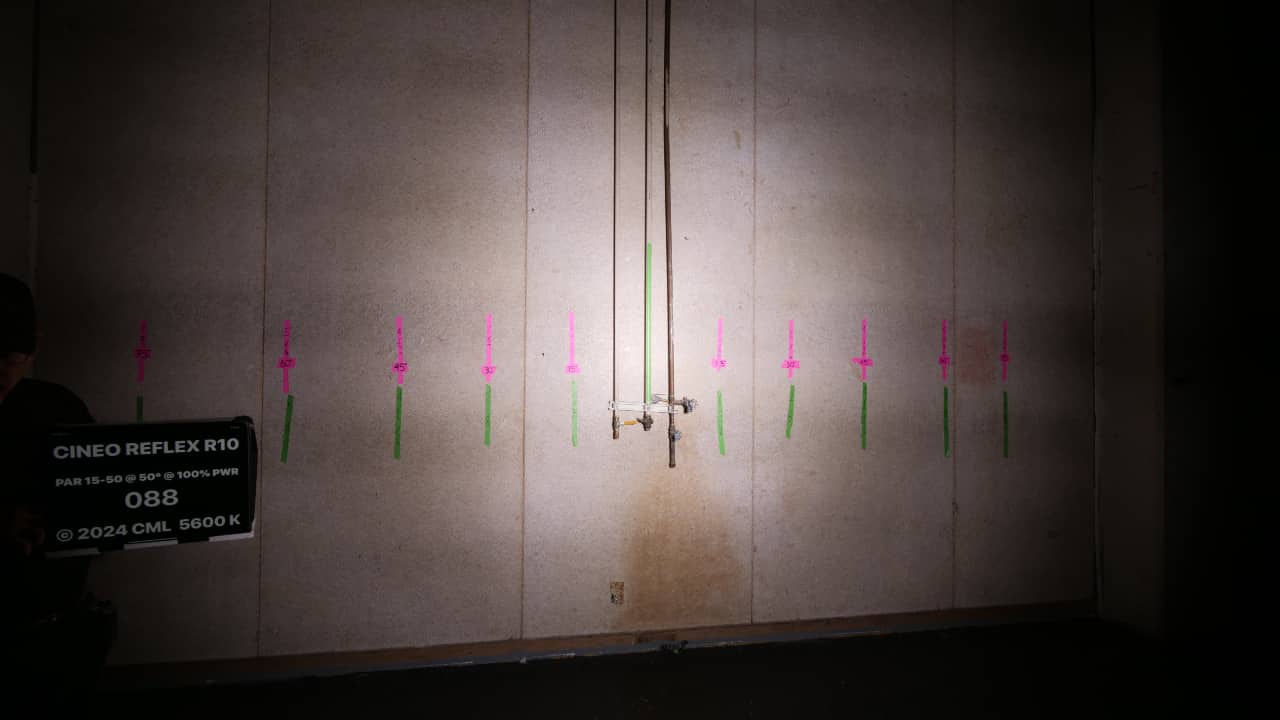

15º-50º Par @50º	14500	1,347	5281 K	-0.002

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
15º-50º Par @32.5º	24000	2,230	5405 K	-0.002

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
15º-50º Par @15º	31000	2,880	5410 K	-0.004
