2024 CML Camera/Lighting Tests – Light Measurements

Creamsource Vortex 4

RRGBBW panel.

Note: brightness depends on the output mode of the light (some lights have modes that optimize brightness, others that optimize color, others that minimize fan noise...). The output mode is listed in tests where it was recorded, otherwise it is whatever mode the light was delivered in. The mode we tested may not be the mode used in the manufacture’s published specs. Use these brightness numbers to compare conditions only within this test. If you need a lamp to hit specific levels, please check with the manufacturer — or test it yourself!

Bare Fixture, 100% power at 3 meters / 9.85 feet

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
3200 K	8000	743	3259 K	0.0003	84	95	104	93	96.7

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
4400 K	8250	767	4418 K	0.0003	—	94	102	91	96.2

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
5600 K	8160	758	5626 K	0.0001	74	94	102	95	96.3

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)

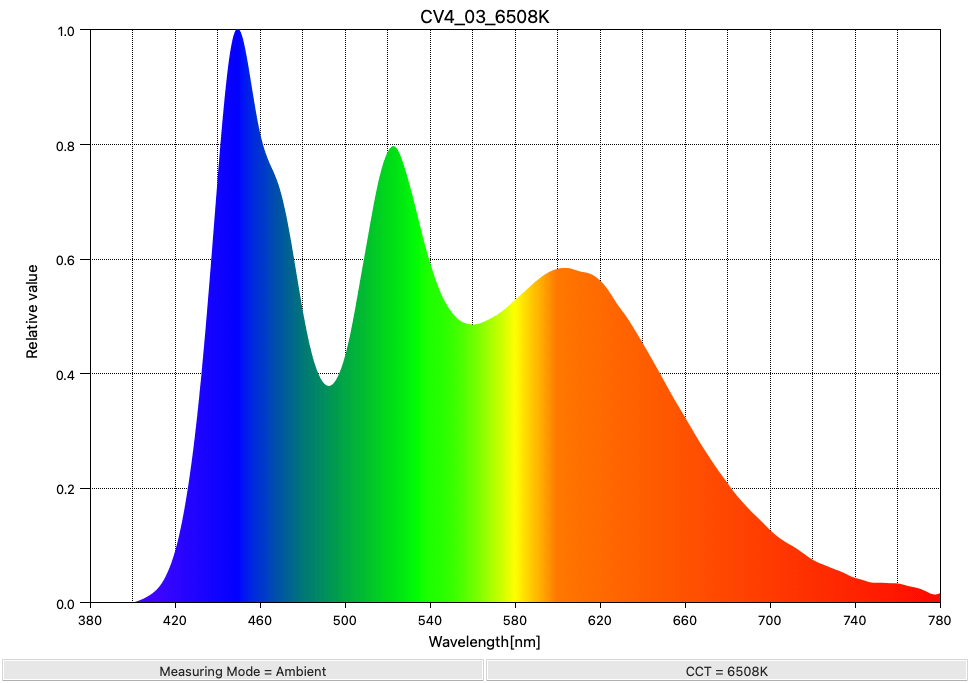

6500 K	8090	752	6508 K	0.0002	—	94	102	97	96.4

Bare Fixture, dimming measurements at 3 meters / 9.85 feet

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
100%	8160	758	5626 K	0.0001	74	94	102	95	96.3

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
50%	4180	388	5653 K	0.0003	74	94	103	95	96.2

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
25%	2100	195	5669 K	0.0001	74	94	103	95	96.0

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
10%	898	83.4	5582 K	0.0015	74	95	103	95	96.1

Measurements and Beam Patterns at 3 meters / 9.85 feet

Light is aimed at the central pipe with the green tape on it. Tape marks indicate 15º increments of beam spread: each tape mark is 7.5º from its neighbor, so the two tape marks closest to the center marker span 15º total. The next nearest ones span 30º between them, the next pair out indicate 45º, and so on. Images captured with the camera (Lumix GH5) set to 5600 K white balance, “standard” photo style, using a 7mm lens. No adjustments made in post other than resizing for the web.

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Bare Fixture	8160	758	5626 K	0.0001

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Dome Med	680	63	5648 K	0

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv

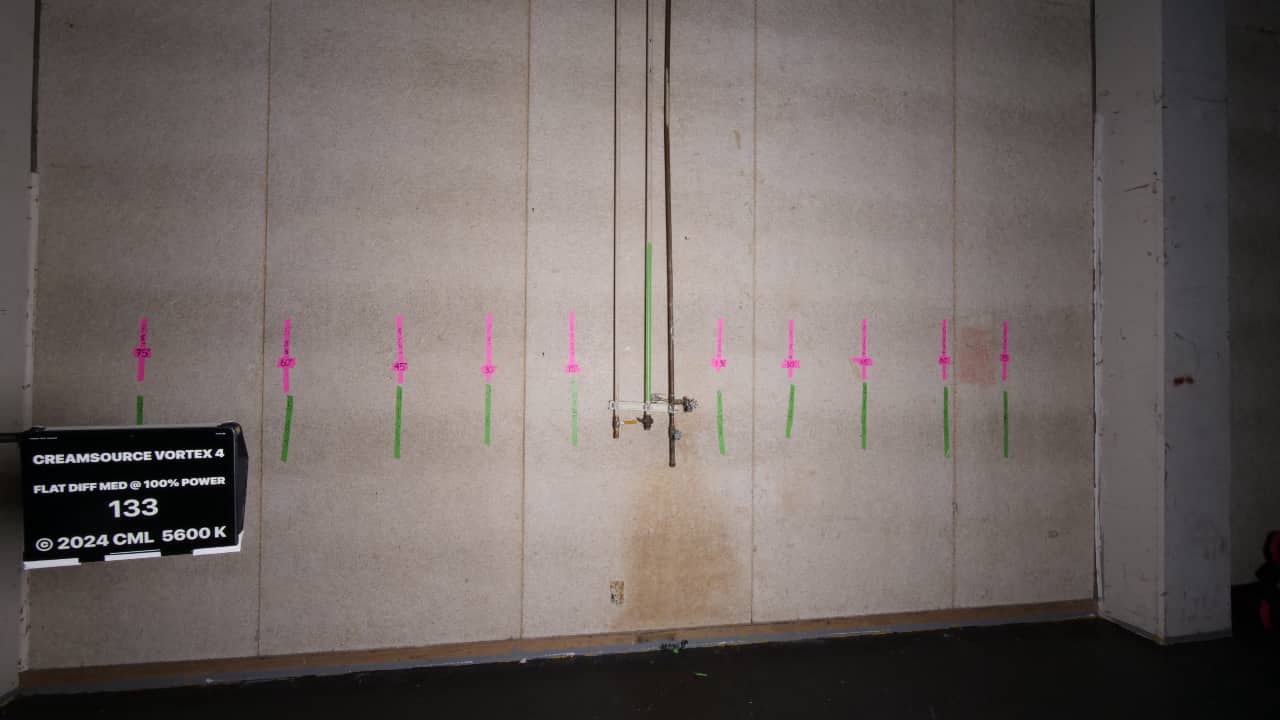

Flat Diff Med	770	72	5618 K	0

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Sbcv4 W/ Int ¼ Grid & Mc	411	38	5685 K	0

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv

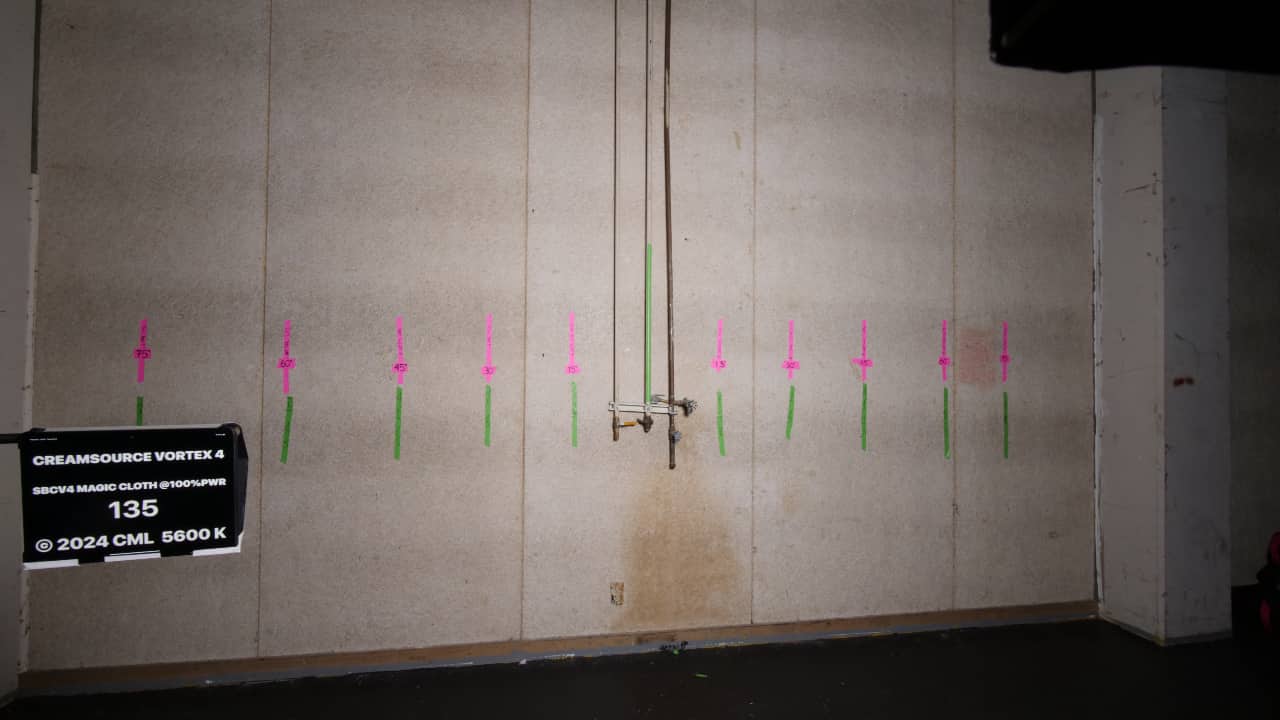

Sbcv4 W/ Magic Cloth	551	51	5626 K	0
