2024 CML Camera/Lighting TestsLight Measurements


ETC fos/4 PL24

DRAGCBIL panel.

More info: ETC


Note: brightness depends on the output mode of the light (some lights have modes that optimize brightness, others that optimize color, others that minimize fan noise...). The output mode is listed in tests where it was recorded, otherwise it is whatever mode the light was delivered in. The mode we tested may not be the mode used in the manufacture’s published specs. Use these brightness numbers to compare conditions only within this test. If you need a lamp to hit specific levels, please check with the manufacturer — or test it yourself!



Bare Fixture - Spectral , 100% power at 3 meters / 9.85 feet


Color
Setting
BrightnessCCT∆uvSSITM-30-18TLCICRI(Ra)
  lux   fc  Rf  Rg
3200 K21401993147 K0.001983941009598.4


Color
Setting
BrightnessCCT∆uvSSITM-30-18TLCICRI(Ra)
  lux   fc  Rf  Rg
4400 K24702294194 K0.000

(no meter images available)


Color
Setting
BrightnessCCT∆uvSSITM-30-18TLCICRI(Ra)
  lux   fc  Rf  Rg
5600 K26502465219 K-0.001

(no meter images available)


Color
Setting
BrightnessCCT∆uvSSITM-30-18TLCICRI(Ra)
  lux   fc  Rf  Rg
6500 K27302545961 K-0.0010941049895.1




Bare Fixture - Spectral , dimming measurements at 3 meters / 9.85 feet


Power
Setting
BrightnessCCT∆uvSSITM-30-18TLCICRI(Ra)
  lux   fc  Rf  Rg
100%26502465219 K-0.001

(no meter images available)


Power
Setting
BrightnessCCT∆uvSSITM-30-18TLCICRI(Ra)
  lux   fc  Rf  Rg
50%13501255170 K-0.000474951039796.2


Power
Setting
BrightnessCCT∆uvSSITM-30-18TLCICRI(Ra)
  lux   fc  Rf  Rg

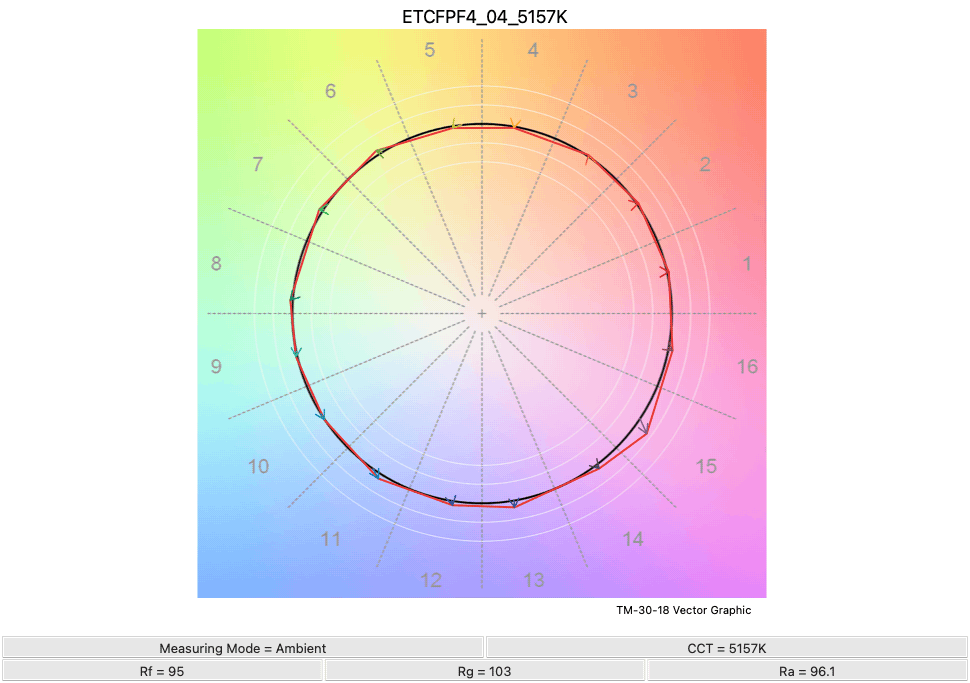

25%67762.95157 K-0.000673951039796.1


Power
Setting
BrightnessCCT∆uvSSITM-30-18TLCICRI(Ra)
  lux   fc  Rf  Rg
10%27125.25117 K-0.001173951049795.7




Measurements and Beam Patterns at 3 meters / 9.85 feet

Light is aimed at the central pipe with the green tape on it. Tape marks indicate 15º increments of beam spread: each tape mark is 7.5º from its neighbor, so the two tape marks closest to the center marker span 15º total. The next nearest ones span 30º between them, the next pair out indicate 45º, and so on. Images captured with the camera (Lumix GH5) set to 5600 K white balance, “standard” photo style, using a 7mm lens. No adjustments made in post other than resizing for the web.

ModifierBrightnessCCT∆uv
  lux   fc
Bare Fixture - Spectral 26502465219 K-0.001

ModifierBrightnessCCT∆uv
  lux   fc
Light Diffusion25202345399 K-0.001

ModifierBrightnessCCT∆uv
  lux   fc
Standard Diffusion24802315509 K-0.0022

ModifierBrightnessCCT∆uv
  lux   fc
Heavy Diffusion24402275477 K-0.0017

ModifierBrightnessCCT∆uv
  lux   fc
Intensifier Diff36603405433 K-0.002
