2024 CML Camera/Lighting Tests – Light Measurements

Fiilex G3 Color

Ellipsoidal.

More info: Fiilex

Note: brightness depends on the output mode of the light (some lights have modes that optimize brightness, others that optimize color, others that minimize fan noise...). The output mode is listed in tests where it was recorded, otherwise it is whatever mode the light was delivered in. The mode we tested may not be the mode used in the manufacture’s published specs. Use these brightness numbers to compare conditions only within this test. If you need a lamp to hit specific levels, please check with the manufacturer — or test it yourself!

Bare Fixture, 100% power at 3 meters / 9.85 feet

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)

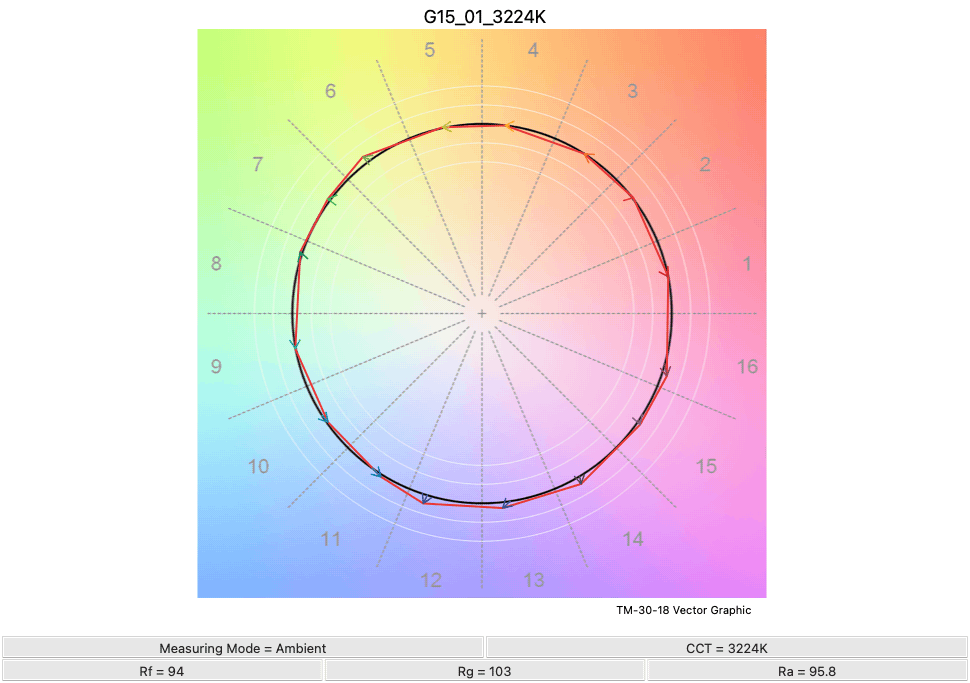

3200 K	1500	139	3224 K	-0.0008	76	94	103	92	95.8

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
4400 K	1480	137	4416 K	-0.0019	—	94	102	93	97.2

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
5600 K	1490	139	5638 K	-0.0013	77	95	102	96	96.8

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
6500 K	1420	131	6631 K	0.0006	—	95	101	97	97.6

Bare Fixture, dimming measurements at 3 meters / 9.85 feet

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
100%	1490	139	5638 K	-0.0013	77	95	102	96	96.8

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
50%	113	10	5433 K	-0.001	—	—	—	—	—

(no meter images available)

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
25%	51	5	5617 K	-0.003	—	—	—	—	—

(no meter images available)

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
10%	6	1	5084 K	-0.001	—	—	—	—	—

(no meter images available)

Measurements and Beam Patterns at 3 meters / 9.85 feet

Light is aimed at the central pipe with the green tape on it. Tape marks indicate 15º increments of beam spread: each tape mark is 7.5º from its neighbor, so the two tape marks closest to the center marker span 15º total. The next nearest ones span 30º between them, the next pair out indicate 45º, and so on. Images captured with the camera (Lumix GH5) set to 5600 K white balance, “standard” photo style, using a 7mm lens. No adjustments made in post other than resizing for the web.

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Bare Fixture	1490	139	5638 K	-0.0013

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
19º Wide	2660	247	5495 K	0.001

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
19º Medium	3250	302	5403 K	0.000

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
19º Narrow	3550	330	5481 K	-0.001

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
36º Wide	1190	111	5456 K	0.001

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
36º Medium	1270	118	5463 K	0.001

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
36º Narrow	1410	131	5601 K	-0.001
