2024 CML Camera/Lighting Tests – Light Measurements

Godox M600R

RGBWW spot.

More info: Godox

Note: brightness depends on the output mode of the light (some lights have modes that optimize brightness, others that optimize color, others that minimize fan noise...). The output mode is listed in tests where it was recorded, otherwise it is whatever mode the light was delivered in. The mode we tested may not be the mode used in the manufacture’s published specs. Use these brightness numbers to compare conditions only within this test. If you need a lamp to hit specific levels, please check with the manufacturer — or test it yourself!

Bare Fixture, 100% power at 3 meters / 9.85 feet

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
3200 K	2290	213	3213 K	-0.0002	84	94	102	98	95.3

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
4400 K	2460	228	4403 K	0.0001	—	94	102	98	96.3

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
5600 K	2700	251	5577 K	-0.0005	73	93	101	98	97.1

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
6500 K	2730	254	6451 K	0.0012	—	92	100	98	97.4

Bare Fixture, dimming measurements at 3 meters / 9.85 feet

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
100%	2700	251	5577 K	-0.0005	73	93	101	98	97.1

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
50%	1380	128	5525 K	0.0002	73	93	101	98	97.5

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)

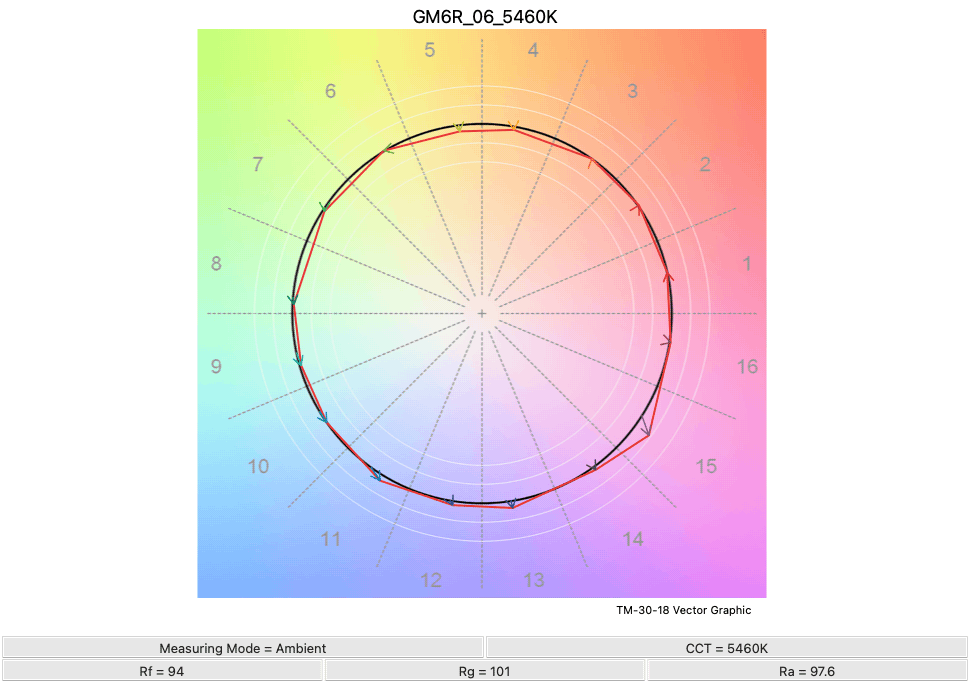

25%	702	65.2	5460 K	0.0005	73	94	101	99	97.6

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
10%	293	27.2	5529 K	0.0007	73	93	101	98	97.8

Measurements and Beam Patterns at 3 meters / 9.85 feet

Light is aimed at the central pipe with the green tape on it. Tape marks indicate 15º increments of beam spread: each tape mark is 7.5º from its neighbor, so the two tape marks closest to the center marker span 15º total. The next nearest ones span 30º between them, the next pair out indicate 45º, and so on. Images captured with the camera (Lumix GH5) set to 5600 K white balance, “standard” photo style, using a 7mm lens. No adjustments made in post other than resizing for the web.

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Bare Fixture	2700	251	5577 K	-0.0005

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Intensifier Br45	14500	1,347	5545 K	0.001

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Fresnel Bf10 @35º	14200	1,319	5669 K	0.000

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Fresnel Bf10 @22.5º	17300	1,607	5627 K	0.000

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Fresnel Bf10 @10º	24800	2,304	5477 K	0.000

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Vsa- Bare	2920	271	5343 K	0.000

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Vsa-36º	6300	585	5474 K	0.000

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Qr-P90 Softbox	1410	131	5381 K	0.002
