2024 CML Camera/Lighting Tests – Light Measurements

Kino Flo Freestyle Air

Panel.

Note: brightness depends on the output mode of the light (some lights have modes that optimize brightness, others that optimize color, others that minimize fan noise...). The output mode is listed in tests where it was recorded, otherwise it is whatever mode the light was delivered in. The mode we tested may not be the mode used in the manufacture’s published specs. Use these brightness numbers to compare conditions only within this test. If you need a lamp to hit specific levels, please check with the manufacturer — or test it yourself!

Soft Box W Magic Cloth (Bare), 100% power at 3 meters / 9.85 feet

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
3200 K	381	35.4	2988 K	0.0012	85	95	103	96	93.1

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
4400 K	392	36.4	4232 K	0.0015	—	93	102	98	93.9
Note:	in white mode – air correct on (in beta) – kf default

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
5600 K	401	37.3	5403 K	0.0033	74	94	101	99	96.6
Note:	in white mode – air correct on (in beta) – kf default

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
6500 K	421	39.1	6053 K	0.0033	—	93	100	99	97.3
Note:	in white mode – air correct on (in beta) – kf default

Soft Box W Magic Cloth (Bare), dimming measurements at 3 meters / 9.85 feet

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
100%	401	37.3	5403 K	0.0033	74	94	101	99	96.6
Note:	in white mode – air correct on (in beta) – kf default

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
50%	158	14.6	5435 K	0.0038	74	94	101	99	96.9
Note:	in white mode – air correct on (in beta) – kf default

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
25%	21.5	2.0	5404 K	0.0047	73	93	100	99	97.0
Note:	in white mode – air correct on (in beta) – kf default

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
10%	73.9	6.9	5509 K	0.0048	73	93	100	99	97.4
Note:	in white mode – air correct on (in beta) – kf default

Soft Box W Magic Cloth (Bare), 100% power at 3 meters / 9.85 feet

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
3200 K	379	35.2	2980 K	0.0003	85	95	103	97	93.4
Note:	in white mode – air correct on (in beta) – arri

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)

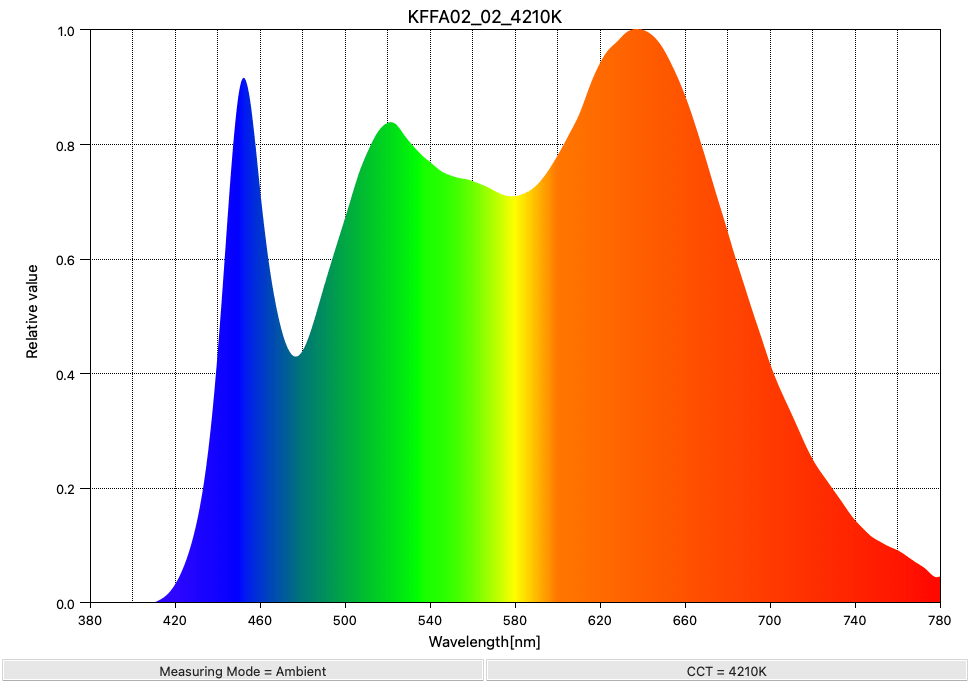

4400 K	386	35.9	4210 K	0.0026	—	93	102	97	93.7
Note:	in white mode – air correct on (in beta) – arri

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
5600 K	405	37.6	5340 K	0.0038	74	94	101	99	96.5
Note:	in white mode – air correct on (in beta) – arri

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
6500 K	414	38.5	6008 K	0.0035	—	93	100	99	97.3
Note:	in white mode – air correct on (in beta) – arri

Soft Box W Magic Cloth (Bare), dimming measurements at 3 meters / 9.85 feet

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
100%	405	37.6	5340 K	0.0038	74	94	101	99	96.5
Note:	in white mode – air correct on (in beta) – arri

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
50%	182	16.9	5432 K	0.0050	74	93	101	99	97.1
Note:	in white mode – air correct on (in beta) – arri

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
25%	77.1	7.2	5499 K	0.0055	73	93	100	99	97.3
Note:	in white mode – air correct on (in beta) – arri

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)

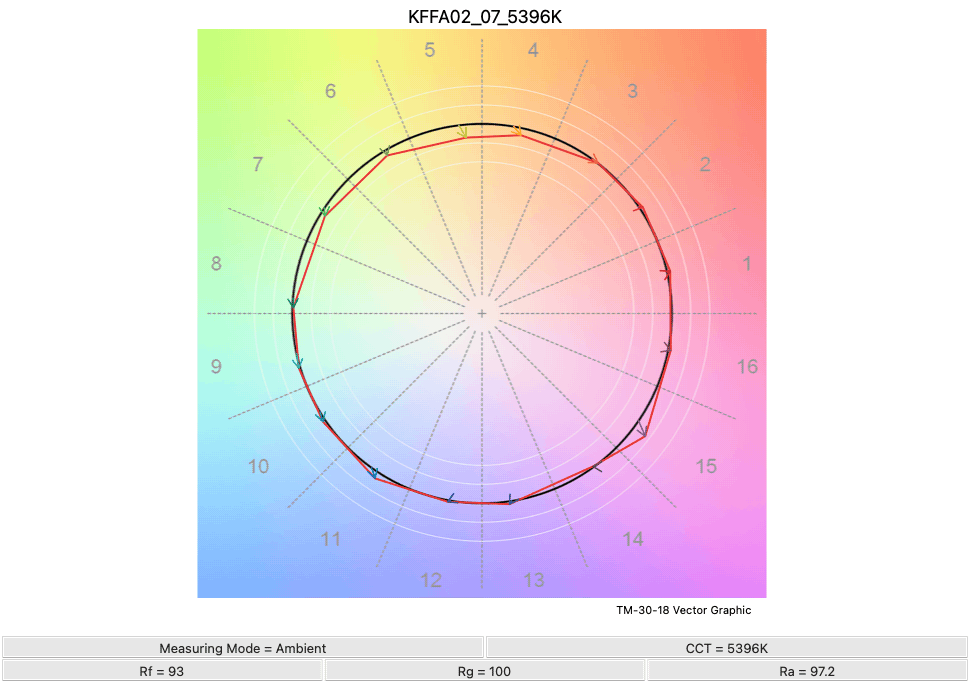

10%	21.8	2.0	5396 K	0.0059	73	93	100	99	97.2
Note:	in white mode – air correct on (in beta) – arri

Measurements and Beam Patterns at 3 meters / 9.85 feet

Light is aimed at the central pipe with the green tape on it. Tape marks indicate 15º increments of beam spread: each tape mark is 7.5º from its neighbor, so the two tape marks closest to the center marker span 15º total. The next nearest ones span 30º between them, the next pair out indicate 45º, and so on. Images captured with the camera (Lumix GH5) set to 5600 K white balance, “standard” photo style, using a 7mm lens. No adjustments made in post other than resizing for the web.

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Soft Box W Magic Cloth (Bare)	401	37.3	5403 K	0.0033
Note:	in white mode – air correct on (in beta) – kf default

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Sb W Magic Cloth W Snap Grid	317	29	5340 K	0
Note:	in white mode – air correct on (in beta) – arri

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Soft Box With ½ Grid	500	46	5371 K	0
Note:	in white mode – air correct on (in beta) – arri

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Soft Box ½ Grid W Snap Grid	457	42	5397 K	0
Note:	in white mode – air correct on (in beta) – arri
