2024 CML Camera/Lighting Tests – Light Measurements

Lupo DayledPRO Full Color 3000

RGBACL fresnel.

More info: Lupo

Note: brightness depends on the output mode of the light (some lights have modes that optimize brightness, others that optimize color, others that minimize fan noise...). The output mode is listed in tests where it was recorded, otherwise it is whatever mode the light was delivered in. The mode we tested may not be the mode used in the manufacture’s published specs. Use these brightness numbers to compare conditions only within this test. If you need a lamp to hit specific levels, please check with the manufacturer — or test it yourself!

Fresnel (Bare State), 100% power at 3 meters / 9.85 feet

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)

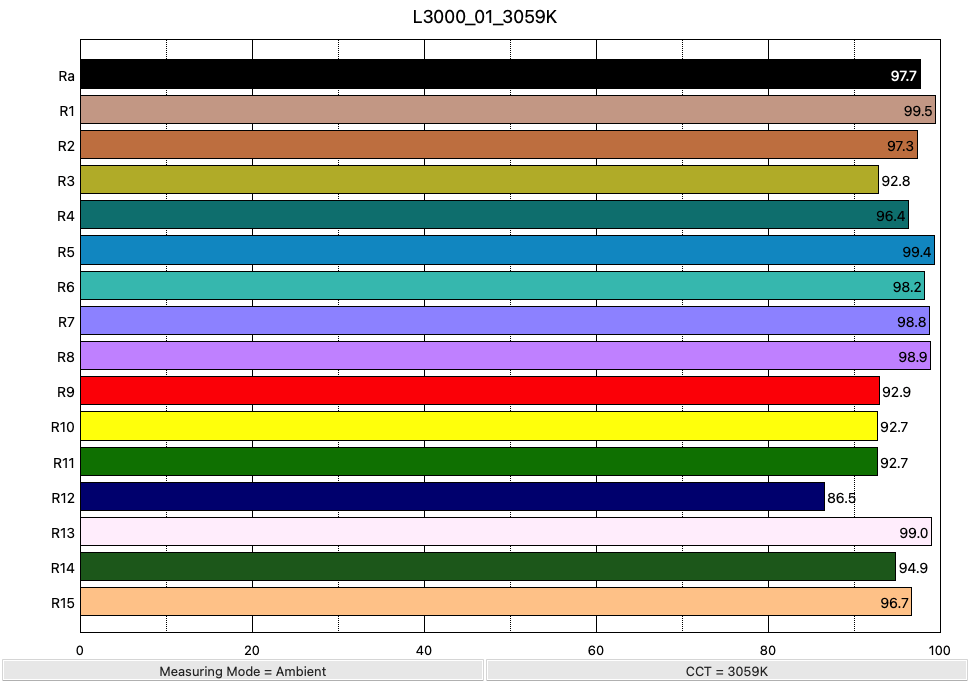

3200 K	1760	163	3059 K	0.0048	83	95	100	95	97.7
Note:	bare state is w/ fresnel at full wide

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
4400 K	1790	167	4293 K	0.0038	—	93	98	96	97.5
Note:	bare state is w/ fresnel at full wide

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
5600 K	1760	164	5608 K	0.0048	74	92	98	97	96.9
Note:	bare state is w/ fresnel at full wide

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
6500 K	1780	166	6574 K	0.0033	—	91	97	97	95.1
Note:	bare state is w/ fresnel at full wide

Fresnel (Bare State), dimming measurements at 3 meters / 9.85 feet

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
100%	1760	164	5608 K	0.0048	74	92	98	97	96.9
Note:	bare state is w/ fresnel at full wide

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
50%	944	87.7	5439 K	0.0021	74	93	100	97	96.0

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
25%	491	45.6	5357 K	0.0001	73	93	101	97	94.3

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
10%	206	19.1	5510 K	0.0010	74	94	101	96	95.5

Measurements and Beam Patterns at 3 meters / 9.85 feet

Light is aimed at the central pipe with the green tape on it. Tape marks indicate 15º increments of beam spread: each tape mark is 7.5º from its neighbor, so the two tape marks closest to the center marker span 15º total. The next nearest ones span 30º between them, the next pair out indicate 45º, and so on. Images captured with the camera (Lumix GH5) set to 5600 K white balance, “standard” photo style, using a 7mm lens. No adjustments made in post other than resizing for the web.

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Fresnel (Bare State)	1760	164	5608 K	0.0048
Note:	bare state is w/ fresnel at full wide

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Fresnel Med	4360	405	5607 K	0.002

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Fresnel Narrow	10800	1,003	5519 K	0.004
