2024 CML Camera/Lighting Tests – Light Measurements

Lupo UltrapanelPRO Full Color 60

RGBWW panel.

More info: Lupo

Note: brightness depends on the output mode of the light (some lights have modes that optimize brightness, others that optimize color, others that minimize fan noise...). The output mode is listed in tests where it was recorded, otherwise it is whatever mode the light was delivered in. The mode we tested may not be the mode used in the manufacture’s published specs. Use these brightness numbers to compare conditions only within this test. If you need a lamp to hit specific levels, please check with the manufacturer — or test it yourself!

Bare Fixture, 100% power at 3 meters / 9.85 feet

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
3200 K	1470	137	3119 K	-0.0033	81	92	101	92	94.3

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
4400 K	1530	142	4488 K	-0.0033	—	91	100	94	95.1

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
5600 K	1560	145	5732 K	0.0007	71	90	98	94	93.7

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)

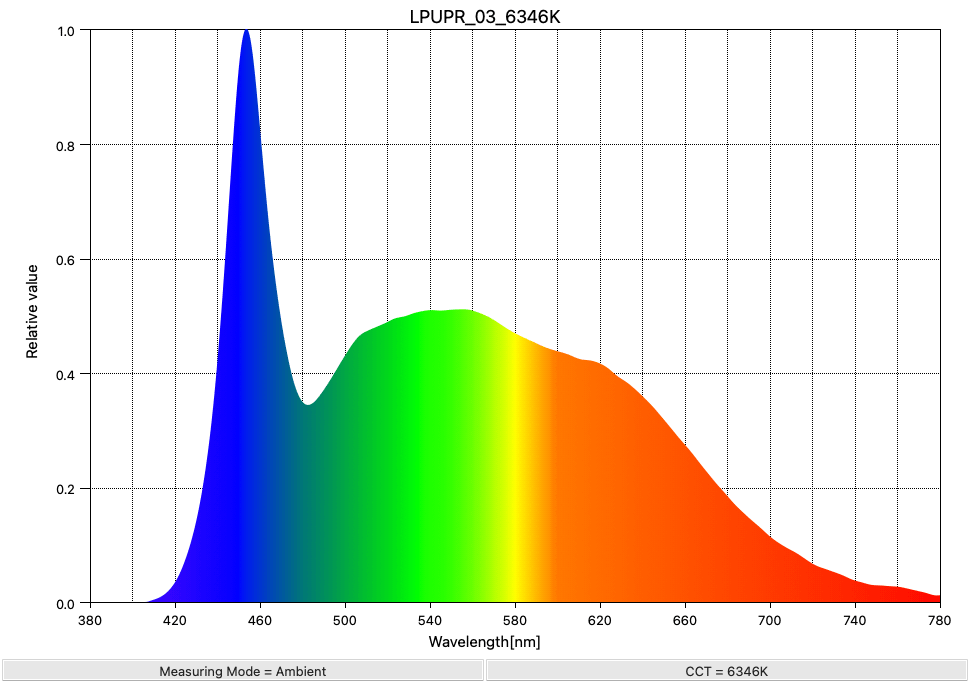

6500 K	1580	147	6346 K	0.0031	—	89	97	94	92.3

Measurements and Beam Patterns at 3 meters / 9.85 feet

Light is aimed at the central pipe with the green tape on it. Tape marks indicate 15º increments of beam spread: each tape mark is 7.5º from its neighbor, so the two tape marks closest to the center marker span 15º total. The next nearest ones span 30º between them, the next pair out indicate 45º, and so on. Images captured with the camera (Lumix GH5) set to 5600 K white balance, “standard” photo style, using a 7mm lens. No adjustments made in post other than resizing for the web.

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Bare Fixture	1560	145	5732 K	0.0007
