2024 CML Camera/Lighting Tests – Light Measurements

Nanlux Evoke 2400B

Bi-color spot with G/M adjustment.

More info: Nanlux

Note: brightness depends on the output mode of the light (some lights have modes that optimize brightness, others that optimize color, others that minimize fan noise...). The output mode is listed in tests where it was recorded, otherwise it is whatever mode the light was delivered in. The mode we tested may not be the mode used in the manufacture’s published specs. Use these brightness numbers to compare conditions only within this test. If you need a lamp to hit specific levels, please check with the manufacturer — or test it yourself!

Bare Fixture, 100% power at 3 meters / 9.85 feet

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)

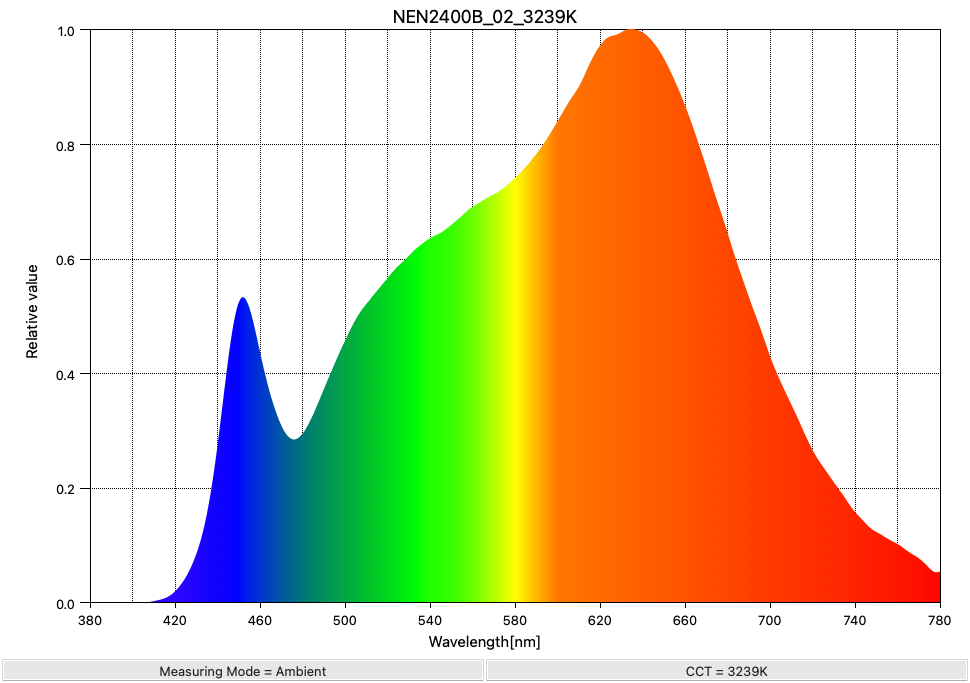

3200 K	9290	863	3239 K	-0.0001	85	95	101	99	98.6
Note:	edison plug @ 20a

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
4400 K	10500	980	4481 K	-0.0001	—	95	101	99	97.8
Note:	edison plug @ 20a

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
5600 K	10500	975	5768 K	0.0003	75	95	102	99	97.6
Note:	edison plug @ 20a

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
6500 K	10600	985	6774 K	0.0006	—	94	102	99	97.3
Note:	edison plug @ 20a

Bare Fixture, dimming measurements at 3 meters / 9.85 feet

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
100%	10500	975	5768 K	0.0003	75	95	102	99	97.6
Note:	edison plug @ 20a

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
50%	5550	515	5751 K	0.0009	74	95	102	99	97.4
Note:	edison plug @ 20a

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
25%	3250	302	5816 K	0.0012	74	95	102	99	97.3
Note:	edison plug @ 20a

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
10%	1530	142	5827 K	0	—	—	—	—	—
Note:	edison plug @ 20a

(no meter images available)

Measurements and Beam Patterns at 3 meters / 9.85 feet

Light is aimed at the central pipe with the green tape on it. Tape marks indicate 15º increments of beam spread: each tape mark is 7.5º from its neighbor, so the two tape marks closest to the center marker span 15º total. The next nearest ones span 30º between them, the next pair out indicate 45º, and so on. Images captured with the camera (Lumix GH5) set to 5600 K white balance, “standard” photo style, using a 7mm lens. No adjustments made in post other than resizing for the web.

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Bare Fixture	10500	975	5768 K	0.0003
Note:	edison plug @ 20a

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Fresnel Fl-35E 15º-46º @ 46º	20300	1,886	5659 K	0

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Fresnel Fl-35E 15º-46º @ 30.5º	37300	3,465	5735 K	0

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Fresnel Fl-35E 15º-46º @ 15º	72000	6,689	5681 K	0
