2024 CML Camera/Lighting Tests – Light Measurements

Rosco DMG Mini

RGBLAW panel.

More info: Rosco

Note: brightness depends on the output mode of the light (some lights have modes that optimize brightness, others that optimize color, others that minimize fan noise...). The output mode is listed in tests where it was recorded, otherwise it is whatever mode the light was delivered in. The mode we tested may not be the mode used in the manufacture’s published specs. Use these brightness numbers to compare conditions only within this test. If you need a lamp to hit specific levels, please check with the manufacturer — or test it yourself!

Bare Fixture, 100% power at 3 meters / 9.85 feet

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
3200 K	381	35.4	3167 K	0.0003	82	93	99	95	96.5

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)

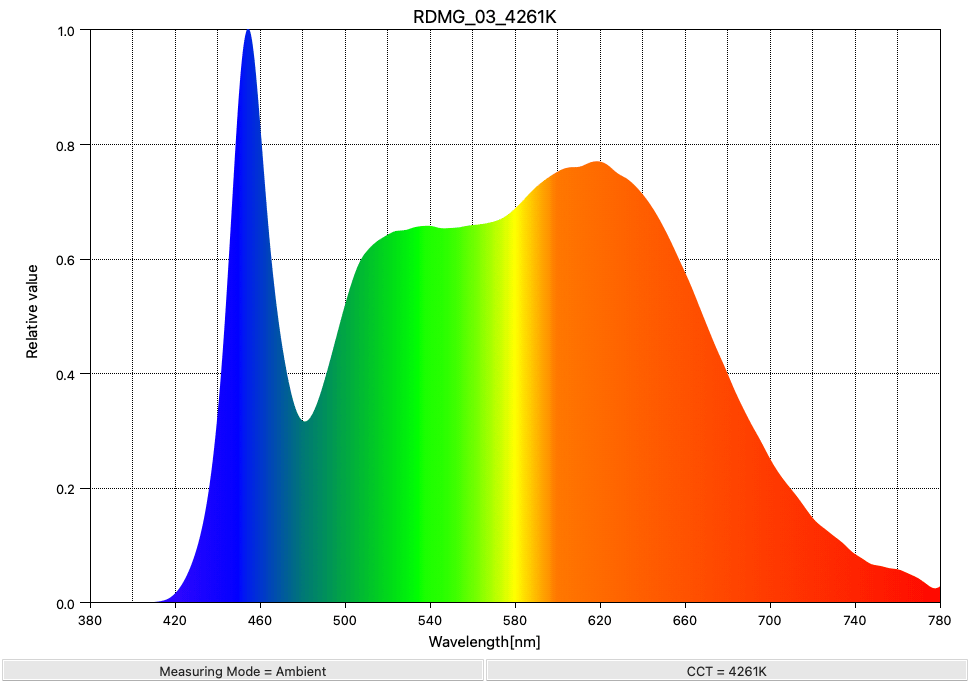

4400 K	302	28.1	4261 K	-0.0006	—	92	100	96	96.7

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
5600 K	337	31.3	5345 K	0.0002	70	92	101	97	96.8

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
6500 K	384	35.7	6167 K	0.0006	—	91	101	97	96.1

Bare Fixture, dimming measurements at 3 meters / 9.85 feet

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
100%	337	31.3	5345 K	0.0002	70	92	101	97	96.8

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
50%	206	19.1	5410 K	0.0019	70	92	100	97	96.5

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
25%	104	9.7	5403 K	0.0026	70	92	100	98	96.7

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
10%	41.4	3.8	5356 K	0.0022	69	92	100	98	97.1

Measurements and Beam Patterns at 3 meters / 9.85 feet

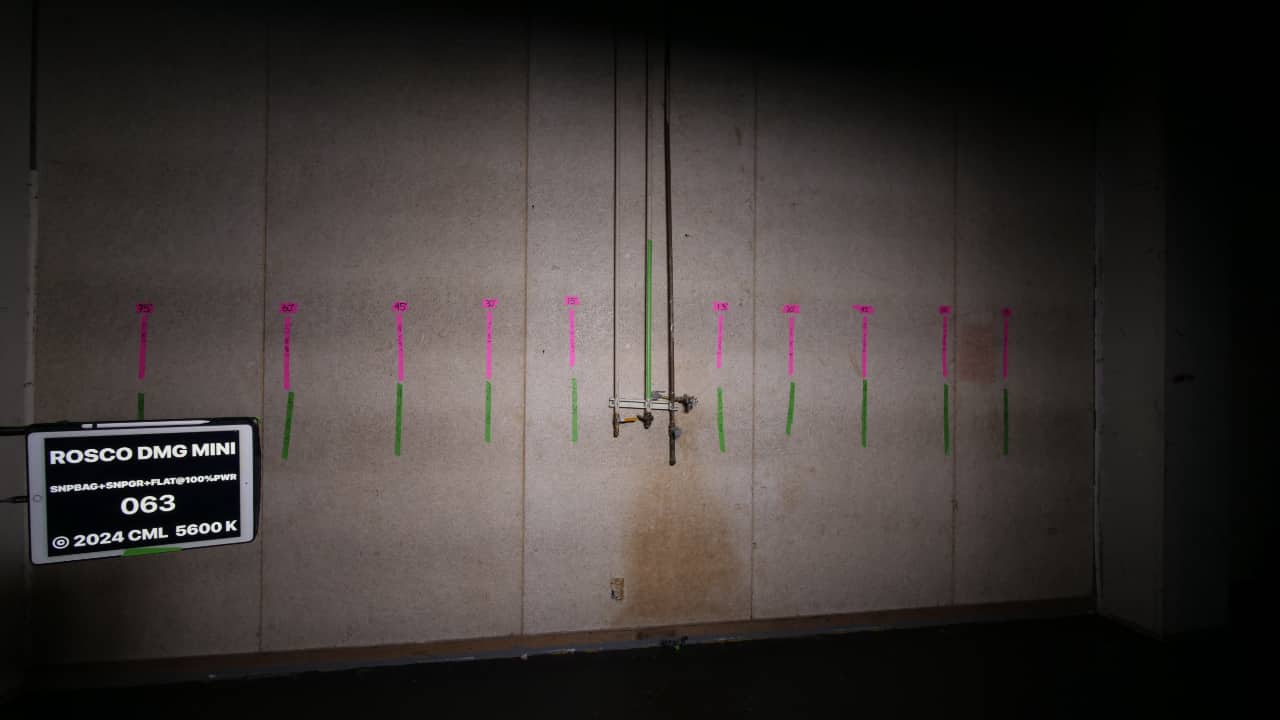

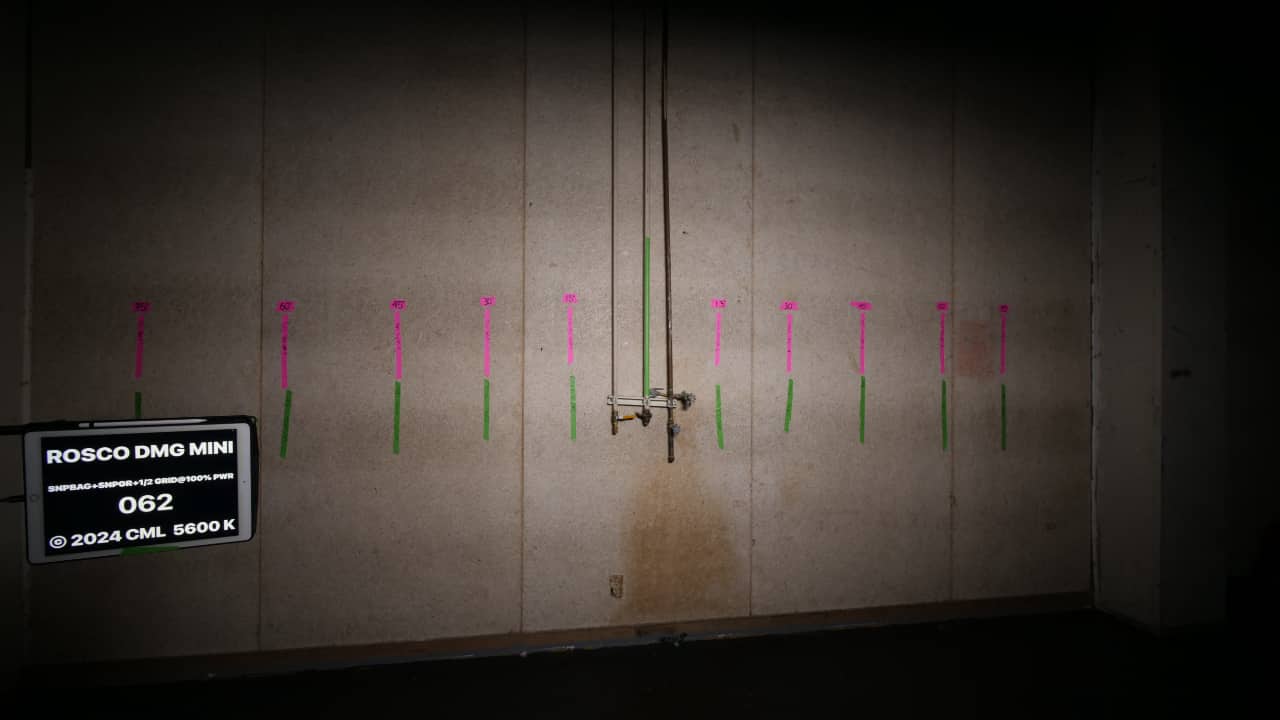

Light is aimed at the central pipe with the green tape on it. Tape marks indicate 15º increments of beam spread: each tape mark is 7.5º from its neighbor, so the two tape marks closest to the center marker span 15º total. The next nearest ones span 30º between them, the next pair out indicate 45º, and so on. Images captured with the camera (Lumix GH5) set to 5600 K white balance, “standard” photo style, using a 7mm lens. No adjustments made in post other than resizing for the web.

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Bare Fixture	337	31.3	5345 K	0.0002

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Flat Diffusion	164	15	5437 K	-0.001

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Dome Diffusion	147	14	5390 K	-0.002

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Flat W/Snapgrid	162	15	5575 K	0.000

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Snapbag W/1/4 Grid	222	21	5386 K	0.000

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Snapbag W/1/2 Grid	185	17	5265 K	0.000

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Snapbag W/1/2 Grid/Snapgrid	176	16	5225 K	0.000

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Snapbag W/ Flat/Snapgrid	150	14	5578 K	-0.001
