2024 CML Camera/Lighting Tests – Light Measurements

SumoLight SUMOMAX

RGBWW array.

Note: brightness depends on the output mode of the light (some lights have modes that optimize brightness, others that optimize color, others that minimize fan noise...). The output mode is listed in tests where it was recorded, otherwise it is whatever mode the light was delivered in. The mode we tested may not be the mode used in the manufacture’s published specs. Use these brightness numbers to compare conditions only within this test. If you need a lamp to hit specific levels, please check with the manufacturer — or test it yourself!

Bare Fixture, 100% power at 3 meters / 9.85 feet

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
3200 K	19500	1810	3220 K	-0.0008	87	96	103	99	96.5

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
4400 K	21300	1980	4500 K	-0.0016	—	95	103	99	96.0

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)

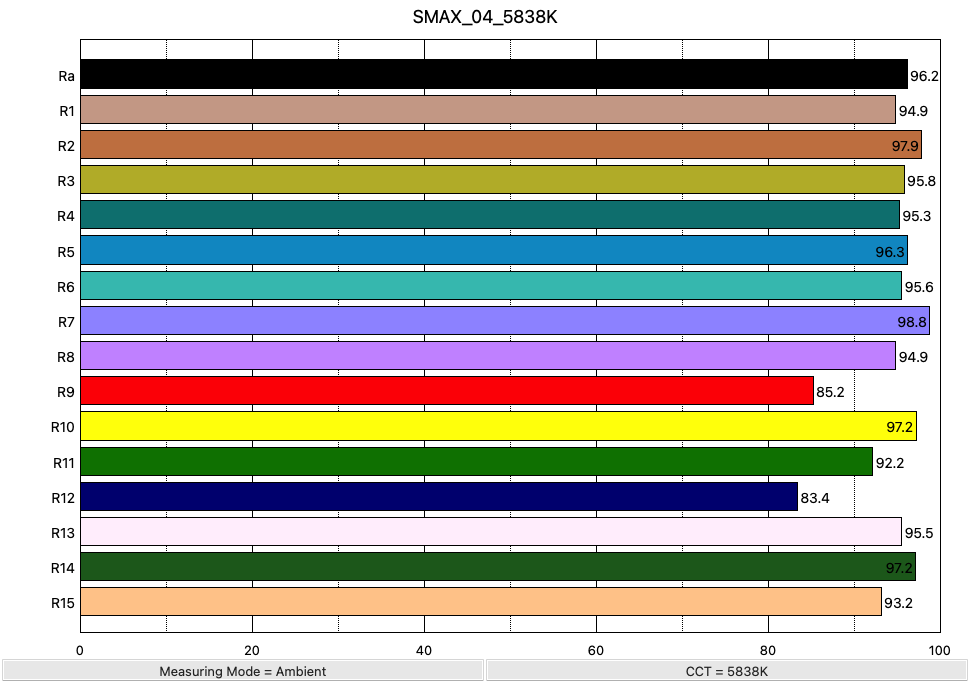

5600 K	22500	2090	5838 K	-0.0016	75	94	103	99	96.2

Color Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Color Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
6500 K	23400	2180	6952 K	-0.0017	—	93	101	99	96.9

Bare Fixture, dimming measurements at 3 meters / 9.85 feet

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
100%	22500	2090	5838 K	-0.0016	75	94	103	99	96.2

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
50%	10700	994	6040 K	-0.0012	74	94	102	99	96.6

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
25%	5030	468	6012 K	-0.0021	74	94	103	99	96.2

Power Setting	Brightness		CCT	∆uv	SSI	TM-30-18		TLCI	CRI(Ra)
Power Setting	lux	fc	CCT	∆uv	SSI	Rf	Rg	TLCI	CRI(Ra)
10%	1300	121	6270 K	-0.0025	73	94	103	99	95.8

Measurements and Beam Patterns at 3 meters / 9.85 feet

Light is aimed at the central pipe with the green tape on it. Tape marks indicate 15º increments of beam spread: each tape mark is 7.5º from its neighbor, so the two tape marks closest to the center marker span 15º total. The next nearest ones span 30º between them, the next pair out indicate 45º, and so on. Images captured with the camera (Lumix GH5) set to 5600 K white balance, “standard” photo style, using a 7mm lens. No adjustments made in post other than resizing for the web.

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Bare Fixture	22500	2090	5838 K	-0.0016

Modifier	Brightness		CCT	∆uv
Modifier	lux	fc	CCT	∆uv
Standard Diff Plate	1490	138	5498 K	-0.002
